A11VLO260DRL/11+A4VG180EP2/32 (R902056657)

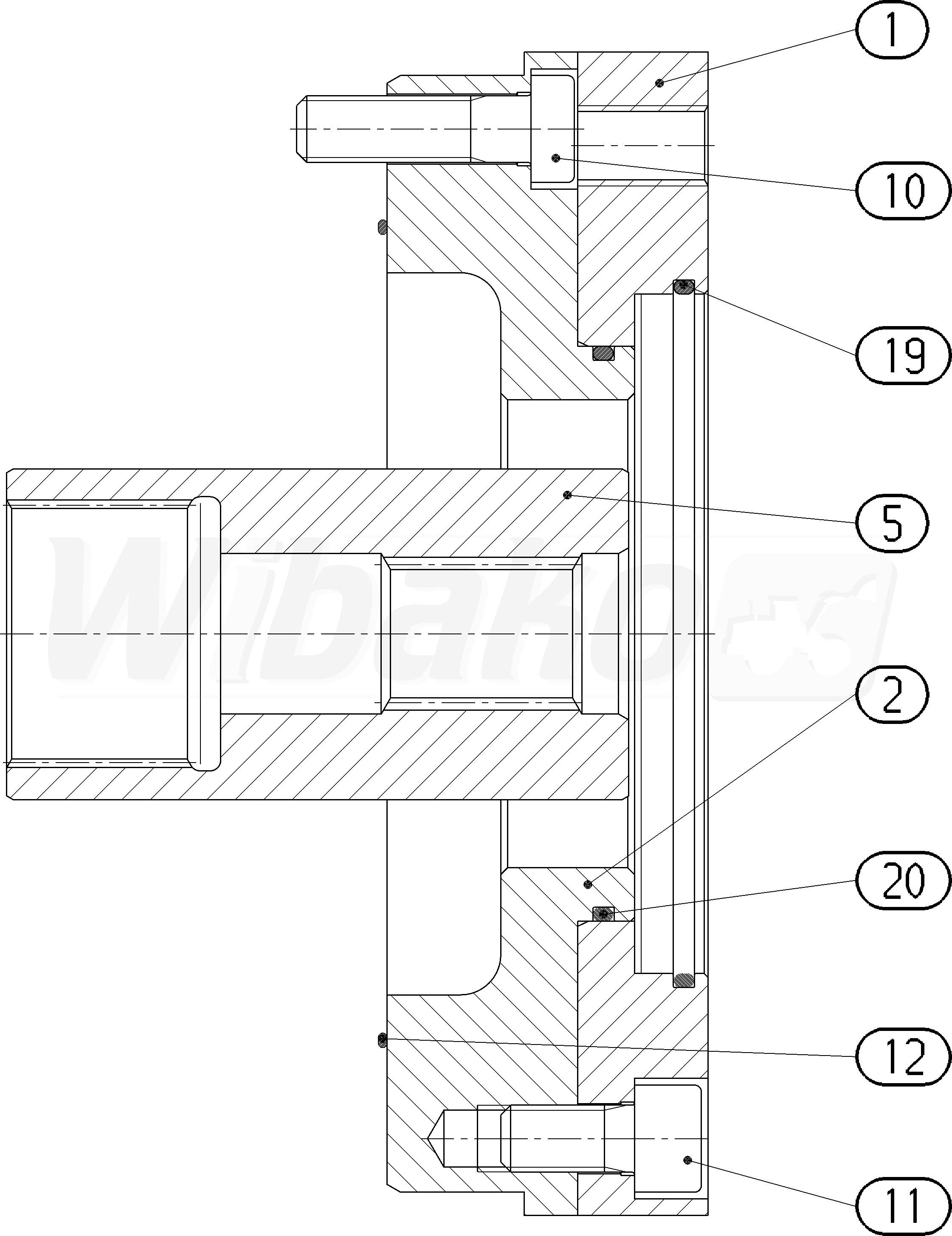

BELL HOUSING (65005)

BELL HOUSING
(65005)


1

INTERMEDIATE FLANGE
(34331)


2

PUMP COVER
(33949)


5

THROUGH DRIVE COUPLING
(65085)


10

SOCKET HEAD CAP SCREW
(24834)


11

SOCKET HEAD CAP SCREW
(31338)


19

O-RING
(26141)


20

O-RING
(10431)


98

SEAL KIT
(24828)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
