A4VG105EP1DM3L/32R-NSF02F021SH-S+AZPN-11 (R902074405)

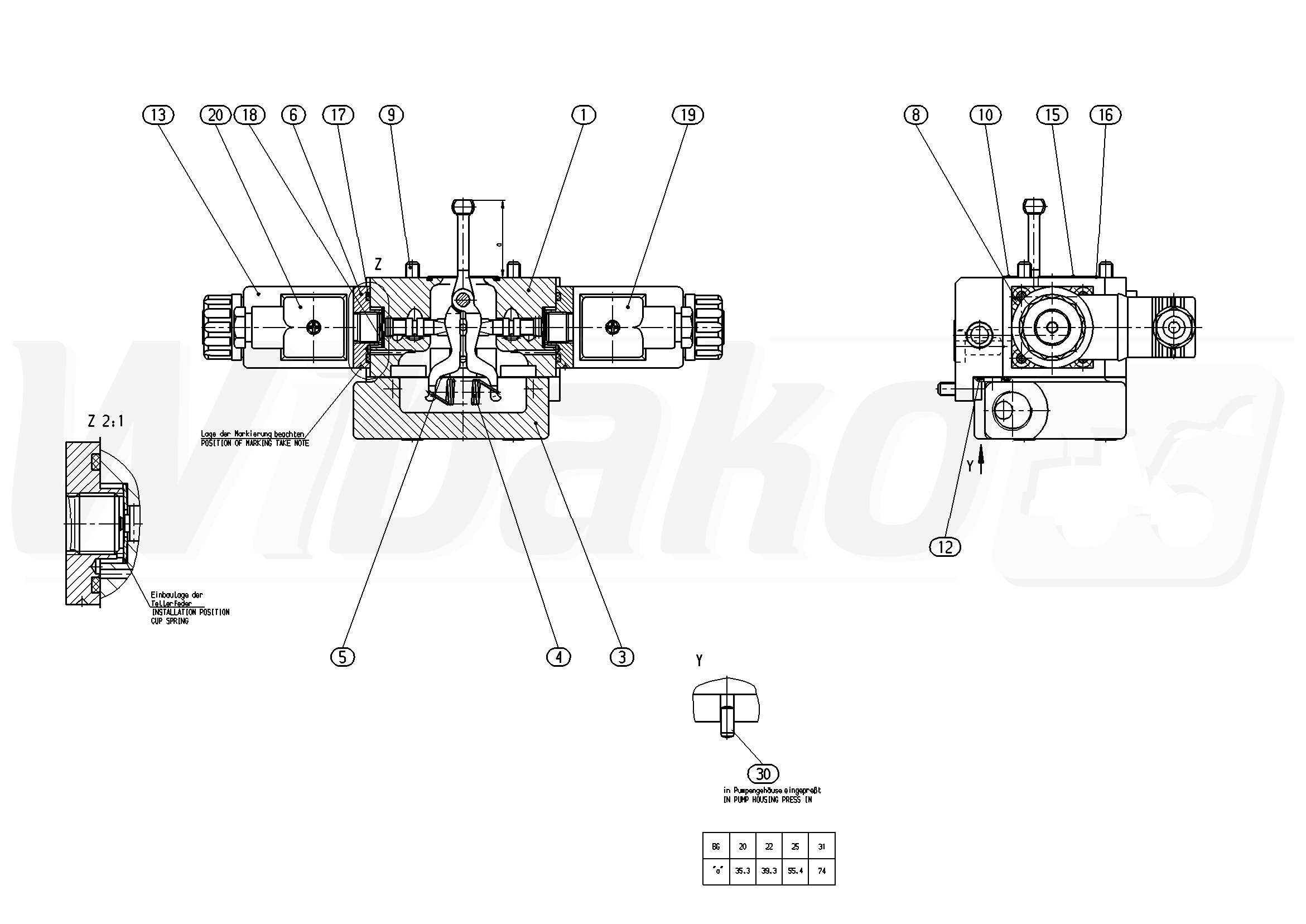

CONTROL MODULE (58590)

CONTROL MODULE
(58590)


1

BASIC UNIT
(57405)

Group »


3

CONNECTION COVER
(45036)


4

EXTENSION SPRING
(13414)


5

SEAL
(13412)


6

LOCATION PIECE
(13796)


8

SOCKET HEAD CAP SCREW
(12810)


9

SOCKET HEAD CAP SCREW
(12220)


10

O-RING
(10508)


12

O-RING
(15512)


13

PROPORTIONAL SOLENOID
(17503)


15

O-RING
(10450)


16

O-RING
(10370)


17

O-RING
(11843)


18

DISC SPRING
(26825)


19

PLUG-IN CONNECTOR
(10519)


20

PLUG-IN CONNECTOR
(10518)


30

STRAIGHT PIN
(12694)


98

SEAL KIT
(11169)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
