A4VG105EP4D1/32L-NSF02F731MC (R902207218)

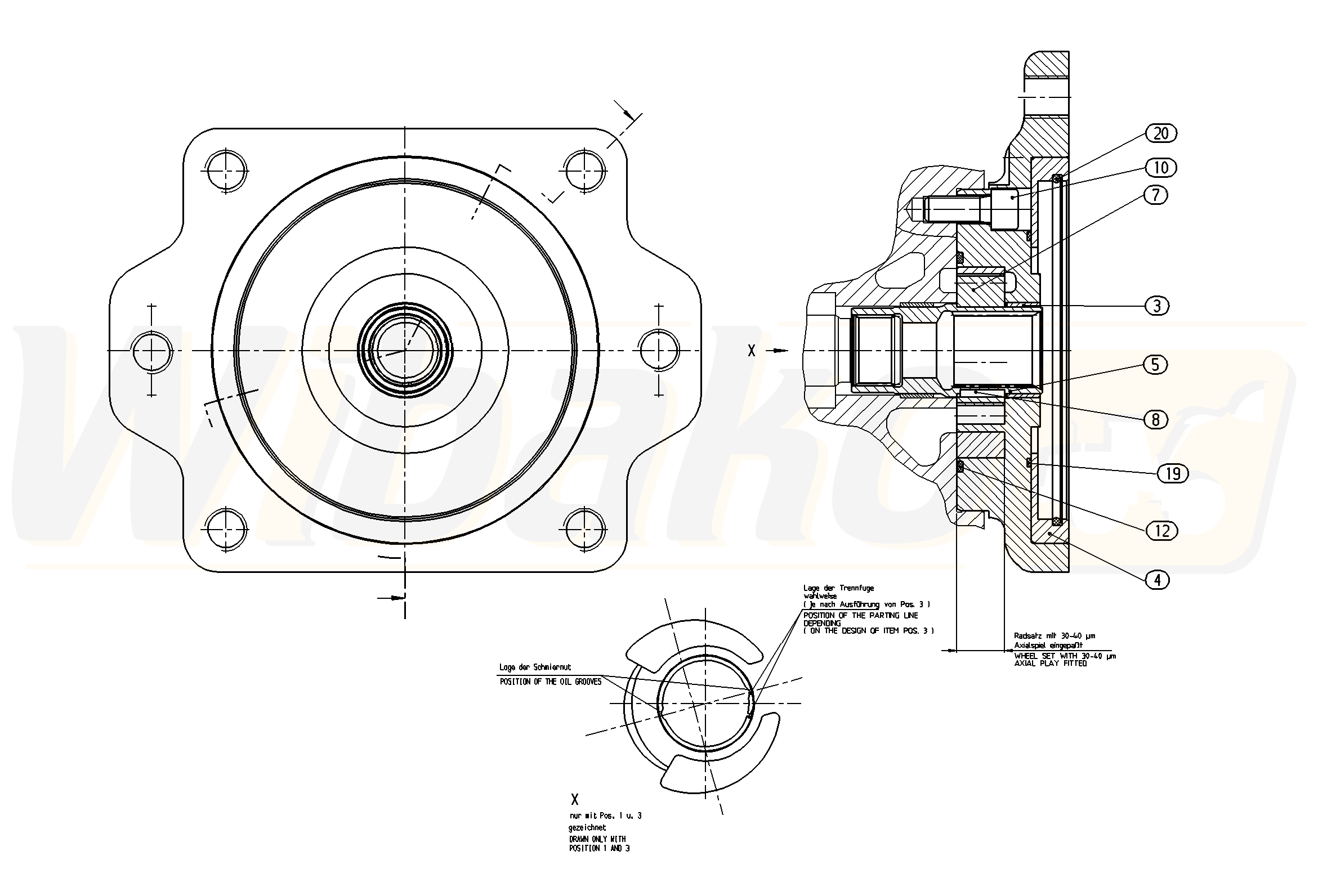

INTERNAL GEAR PUMP (58382)

INTERNAL GEAR PUMP
(58382)


1

INTERMEDIATE FLANGE
(58455)


3

BUSHING
(19095)


4

INTERMEDIATE RING
(13398)


5

THROUGH DRIVE SHAFT
(58456)


7

WHEEL SET
(12798)


8

PARALLEL KEY
(58457)


10

SOCKET HEAD CAP SCREW
(10164)


12

O-RING
(10461)


19

O-RING
(12674)


20

O-RING
(26346)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
