A4VG180DGD/32+A4VG180EP2/32 (R902117494)

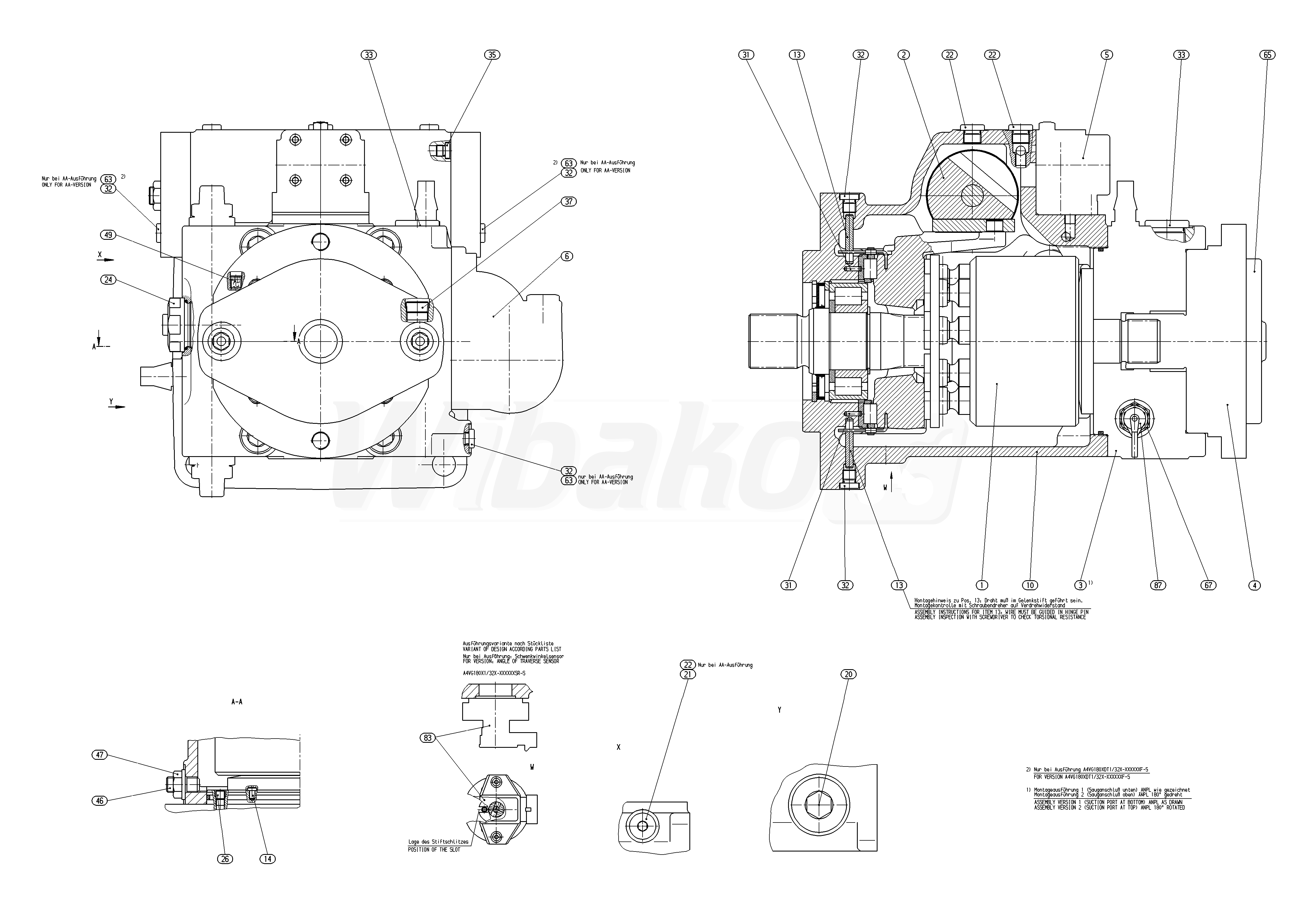

AXIAL-PISTON PUMP (66137)

AXIAL-PISTON PUMP
(66137)


1

ROTARY GROUP
(66148)

Group »


2

CONTROL
(33906)

Group »


3

CONNECTION PLATE
(49626)

Group »


4

INTERNAL GEAR PUMP
(66151)

Group »


5

CONTROL MODULE
(66149)

Group »


6

FILTER
(66150)

Group »


10

HOUSING
(66141)


13

PIVOT PIN
(24782)


14

POITIONING PIN
(10183)


20

SCREW PLUG
(12981)


21

SCREW PLUG
(10090)


22

SCREW PLUG
(10395)


24

ORIFICE SCREW
(45338)

Group »


26

SCREW PLUG
(11753)


31

SLOTTED SPRING PIN
(12545)


32

SCREW PLUG
(10190)


33

SCREW PLUG
(11007)


35

SCREW PLUG
(10220)


37

SCREW PLUG
(13379)


46

SETSCREW
(26369)


47

SEALING NUT
(12984)


67

THREADED REDUCING STUD
(45374)


83

SWIVEL ANGLE SENSOR
(66138)

Group »


87

MEASURING CONNECTION
(16994)


98

SEAL KIT
(26370)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
