A4VG180DA2D6/31R-PZD02FXX1S-S (R909600741)

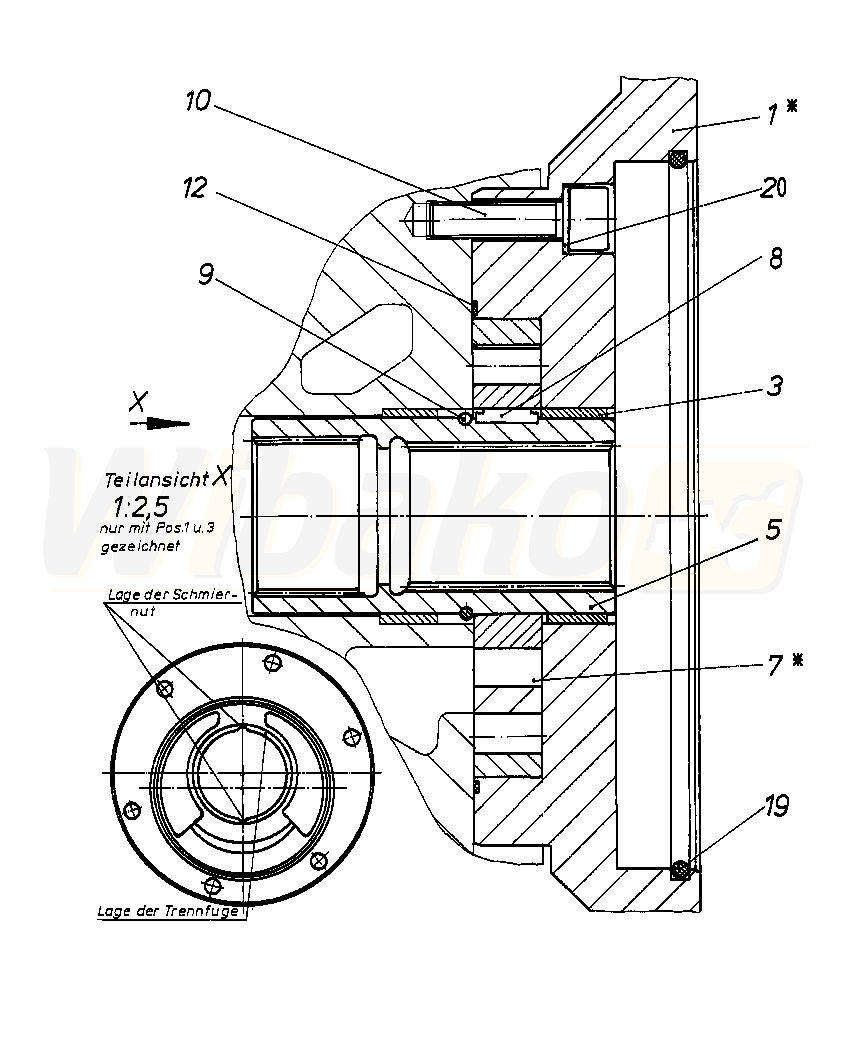

INTERNAL GEAR PUMP (66632)

INTERNAL GEAR PUMP
(66632)


1

INTERMEDIATE FLANGE
(72374)


3

BUSHING
(19247)


5

THROUGH DRIVE SHAFT
(65829)


7

WHEEL SET
(24832)


8

PARALLEL KEY
(24833)


9

SNAP RING
(11165)


10

SOCKET HEAD CAP SCREW
(11184)


12

O-RING
(24821)


19

O-RING
(30886)


20

SEAL RING
(57126)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
