A11VO250DRS/10+A4VG180EP2/31 (R909601406)

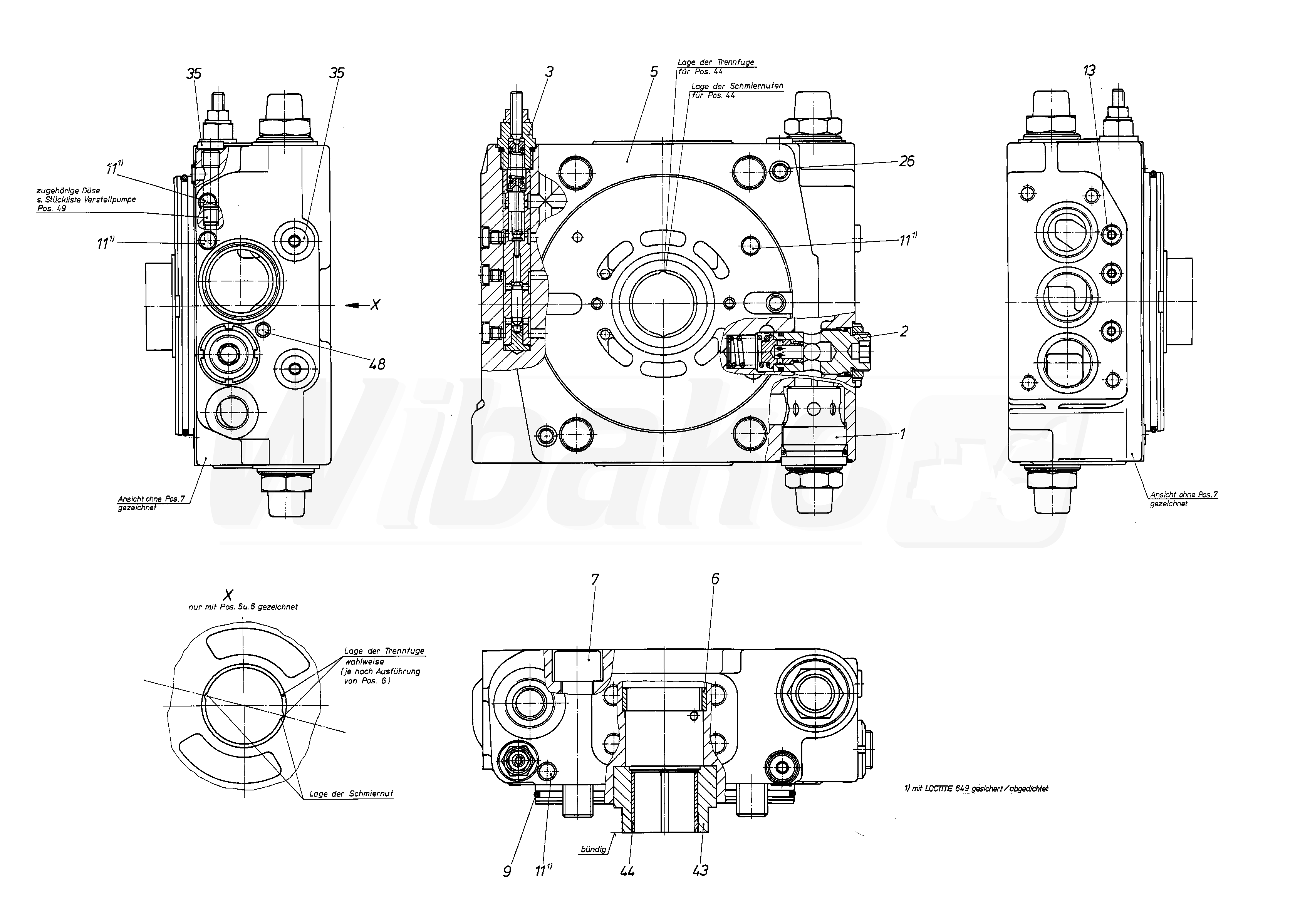

CONNECTION PLATE (53412)

CONNECTION PLATE
(53412)


1

DELIVERY-VALVE ASSEMBLY
(11143)

Group »


2

PRESSURE RELIEF VALVE
(23913)

Group »


3

PRESSURE CUT-OFF VALVE
(53413)

Group »


5

CONNECTION PLATE
(54055)


6

BUSHING
(19247)


7

SOCKET HEAD CAP SCREW
(24817)


9

O-RING
(24818)


11

DOUBLE BREAK-OFF PLUG
(19010)


13

SCREW PLUG
(10330)


26

O-RING
(10450)


35

SCREW PLUG
(10190)


43

BUSHING
(24819)


44

BUSHING
(24820)


48

DOUBLE BREAK-OFF PLUG
(19009)



Return
