AA4VG90HWDX2/32R-NSF52F001D-S (R909608175)

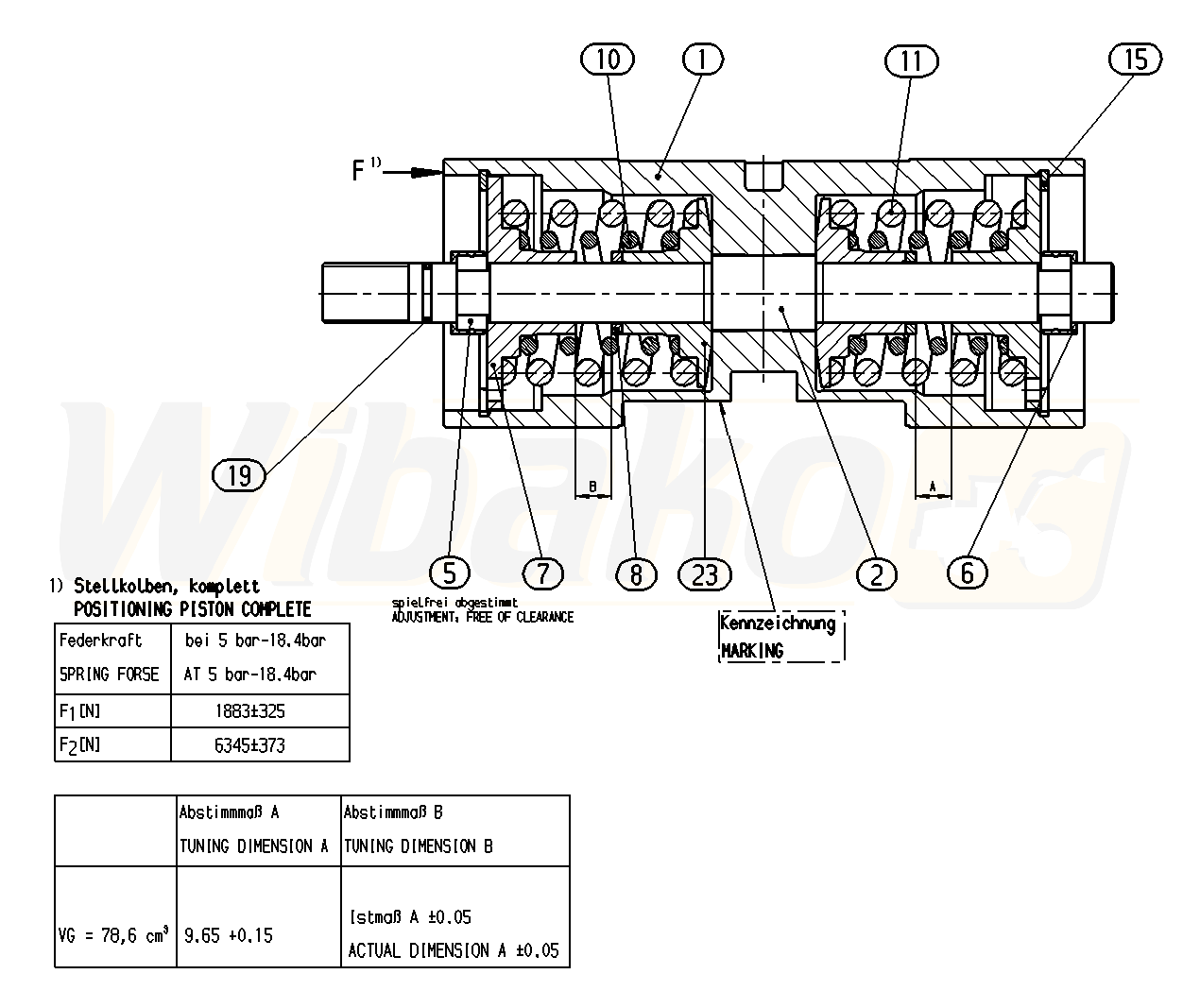

POSITIONING PISTON (64715)

POSITIONING PISTON
(64715)


1

POSITIONING PISTON
(12928)


2

ROD
(10435)


5

RING
(10436)


5

RING
(10437)


5

RING
(10438)


5

RING
(10439)


5

RING
(10440)


5

RING
(10441)


5

RING
(10442)


5

RING
(10443)


5

RING
(10444)


6

LOCATING RING
(10445)


7

SPRING DISK
(10446)


8

SHIM RING
(64718)


8

SHIM RING
(62963)


8

SHIM RING
(62966)


8

SHIM RING
(64719)


8

SHIM RING
(64720)


8

SHIM RING
(64721)


10

COMPRESSION SPRING
(12878)


11

COMPRESSION SPRING
(10448)


15

RETAINING RING
(10449)


19

O-RING
(10450)


23

SPRING DISK
(10451)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
