A4VG180EP2D1/32R-NSD02K011E (R902015982)

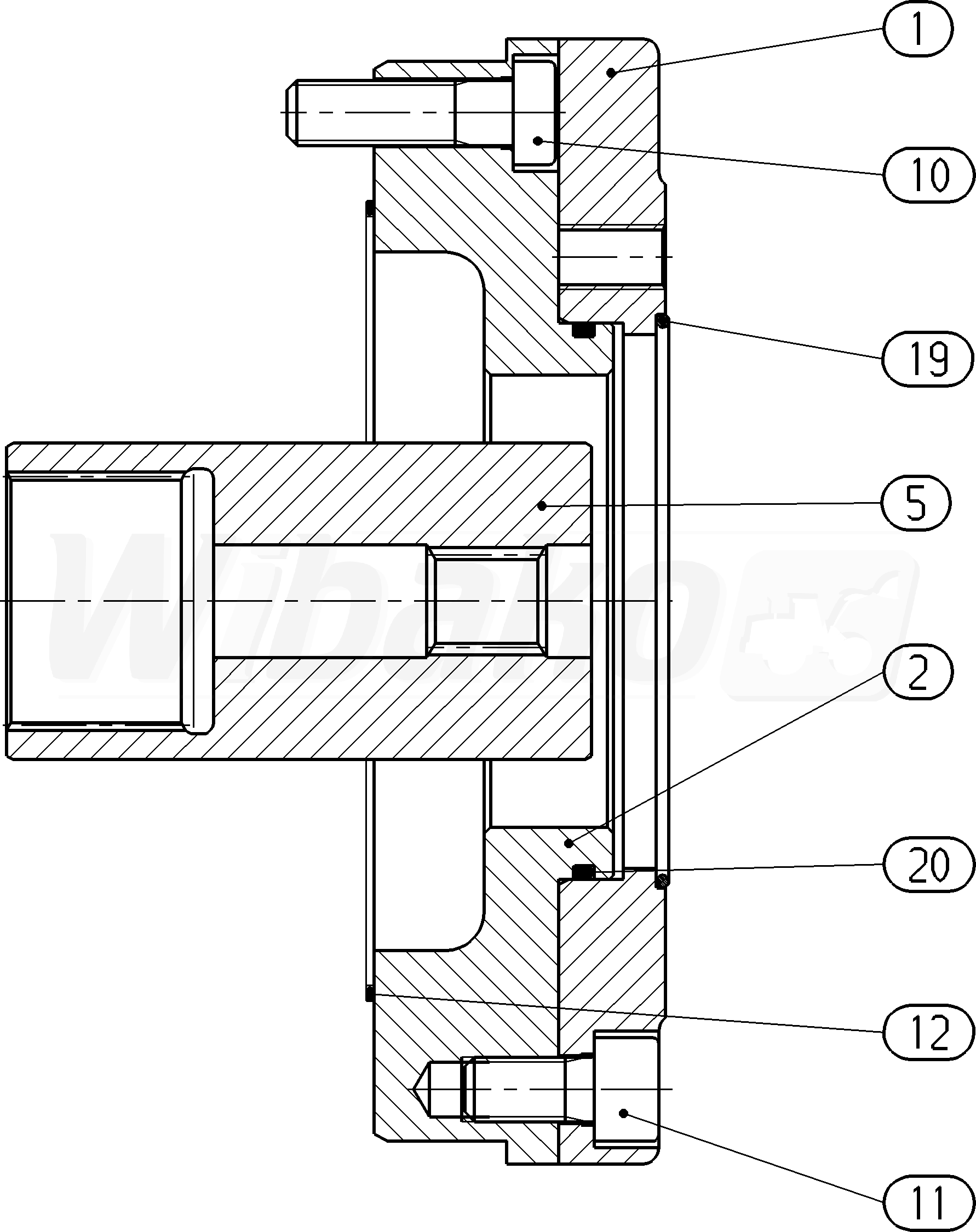

BELL HOUSING (67434)

BELL HOUSING
(67434)


1

INTERMEDIATE FLANGE
(65093)


2

PUMP COVER
(33949)


5

THROUGH DRIVE COUPLING
(67438)


10

SOCKET HEAD CAP SCREW
(24834)


11

SOCKET HEAD CAP SCREW
(31338)


19

O-RING
(26147)


20

O-RING
(10431)


98

SEAL KIT
(24828)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
