A4VG180EP2DMT1/32L-NZD02KXX3E-S (R902026972)

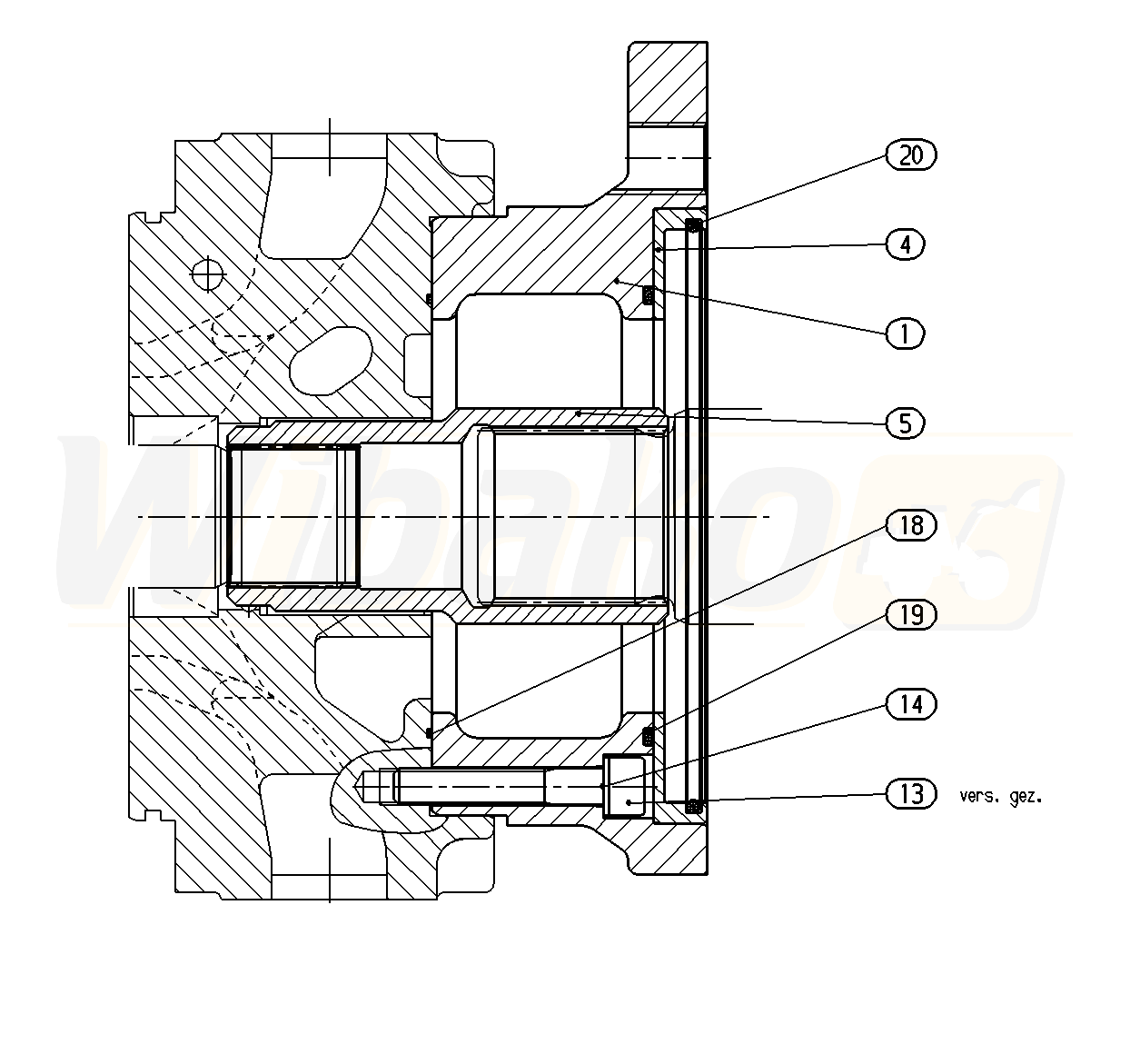

BELL HOUSING (67869)

BELL HOUSING
(67869)


1

INTERMEDIATE FLANGE
(70496)


4

INTERMEDIATE RING
(70497)


5

COUPLING HUB
(70498)


12

O-RING
(24821)


13

SOCKET HEAD CAP SCREW
(31478)


14

SEAL RING
(57126)


19

O-RING
(13711)


20

O-RING
(10736)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
