A4VG180EP2M1/31R-PZD02F011D-S (R909601712)

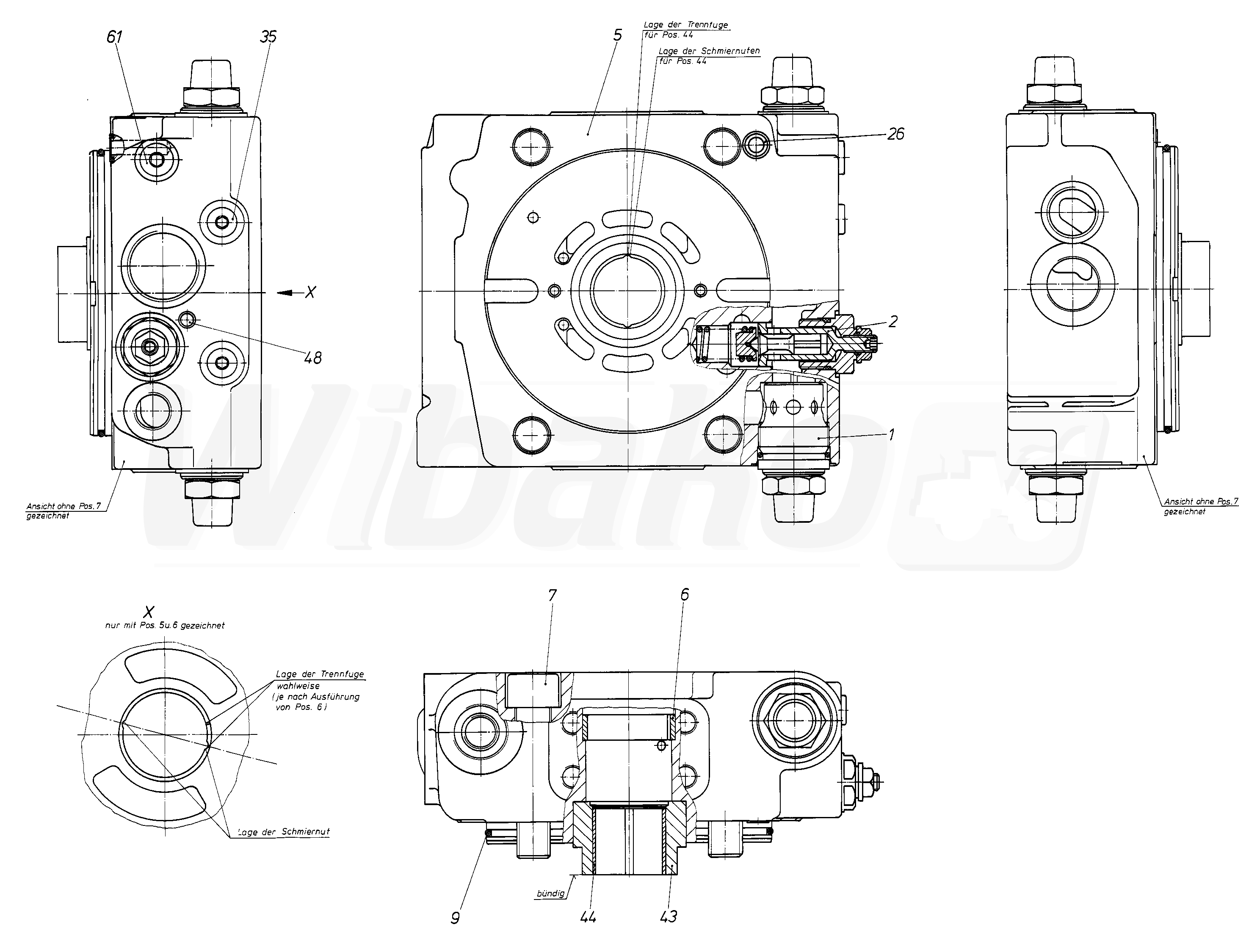

CONNECTION PLATE (68004)

CONNECTION PLATE
(68004)


1

DELIVERY-VALVE ASSEMBLY
(11143)

Group »


2

PRESSURE RELIEF VALVE
(23913)

Group »


5

CONNECTION PLATE
(70660)


6

BUSHING
(19247)


7

SOCKET HEAD CAP SCREW
(24817)


9

O-RING
(24818)


26

O-RING
(10450)


35

SCREW PLUG
(10190)


43

BUSHING
(24819)


44

BUSHING
(24820)


48

DOUBLE BREAK-OFF PLUG
(19009)


61

SCREW PLUG
(10015)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
