A4VG250EP2D8/32R-NZD10F071SP (R902085806)

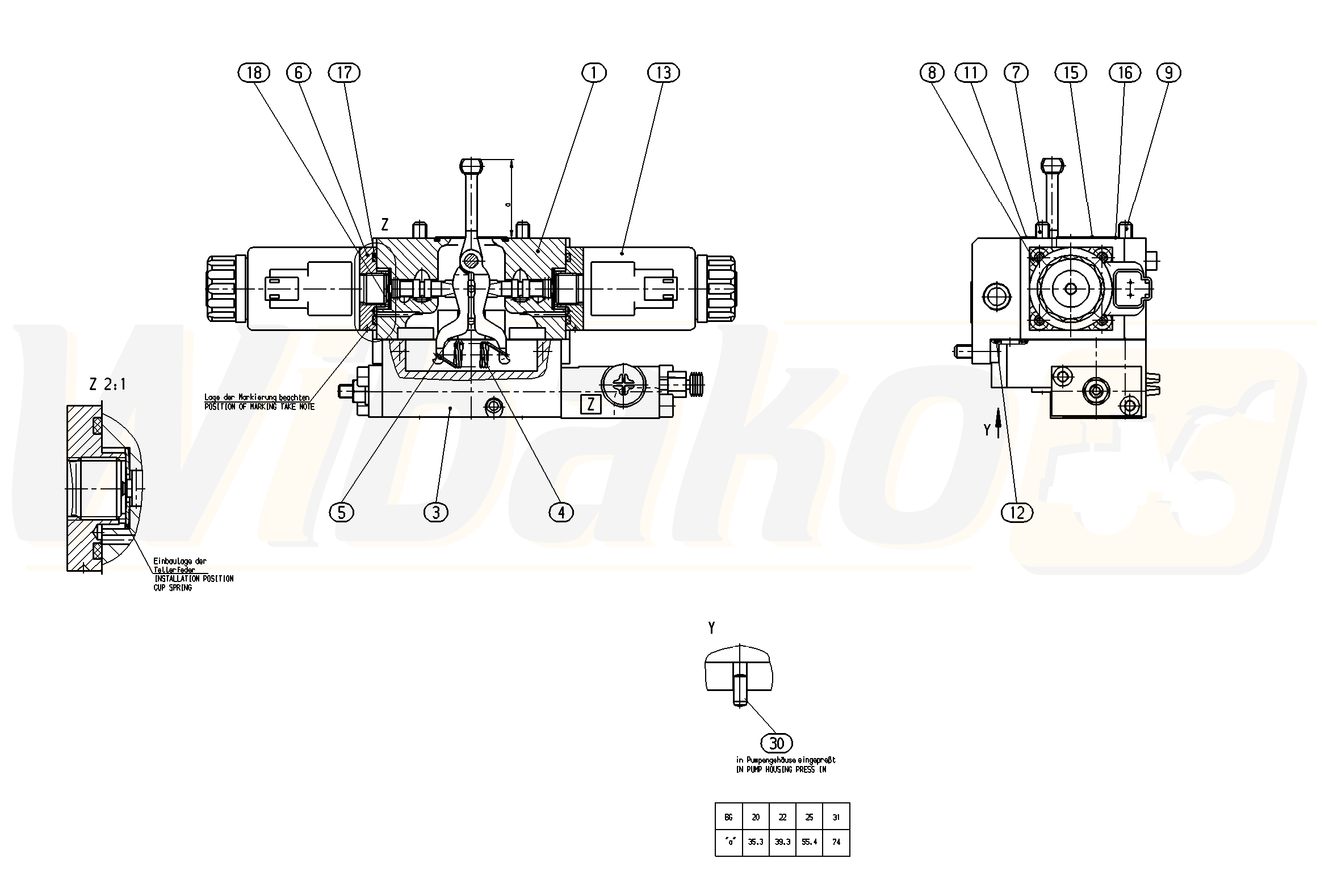

CONTROL MODULE (69430)

CONTROL MODULE
(69430)


1

BASIC UNIT
(69432)

Group »


3

INCHING DEVICE
(32348)

Group »


4

EXTENSION SPRING
(13414)


5

SEAL
(13412)


6

LOCATION PIECE
(13796)


7

SOCKET HEAD CAP SCREW
(11432)


8

SOCKET HEAD CAP SCREW
(12810)


9

SOCKET HEAD CAP SCREW
(11854)


11

O-RING
(10508)


12

O-RING
(15512)


13

PROPORTIONAL SOLENOID
(22460)


15

O-RING
(10450)


16

O-RING
(10370)


17

O-RING
(11843)


18

DISC SPRING
(26825)


30

STRAIGHT PIN
(12694)
