A4VG250DA2D2/32R-NZD10FXX1DH-S (R902123831)

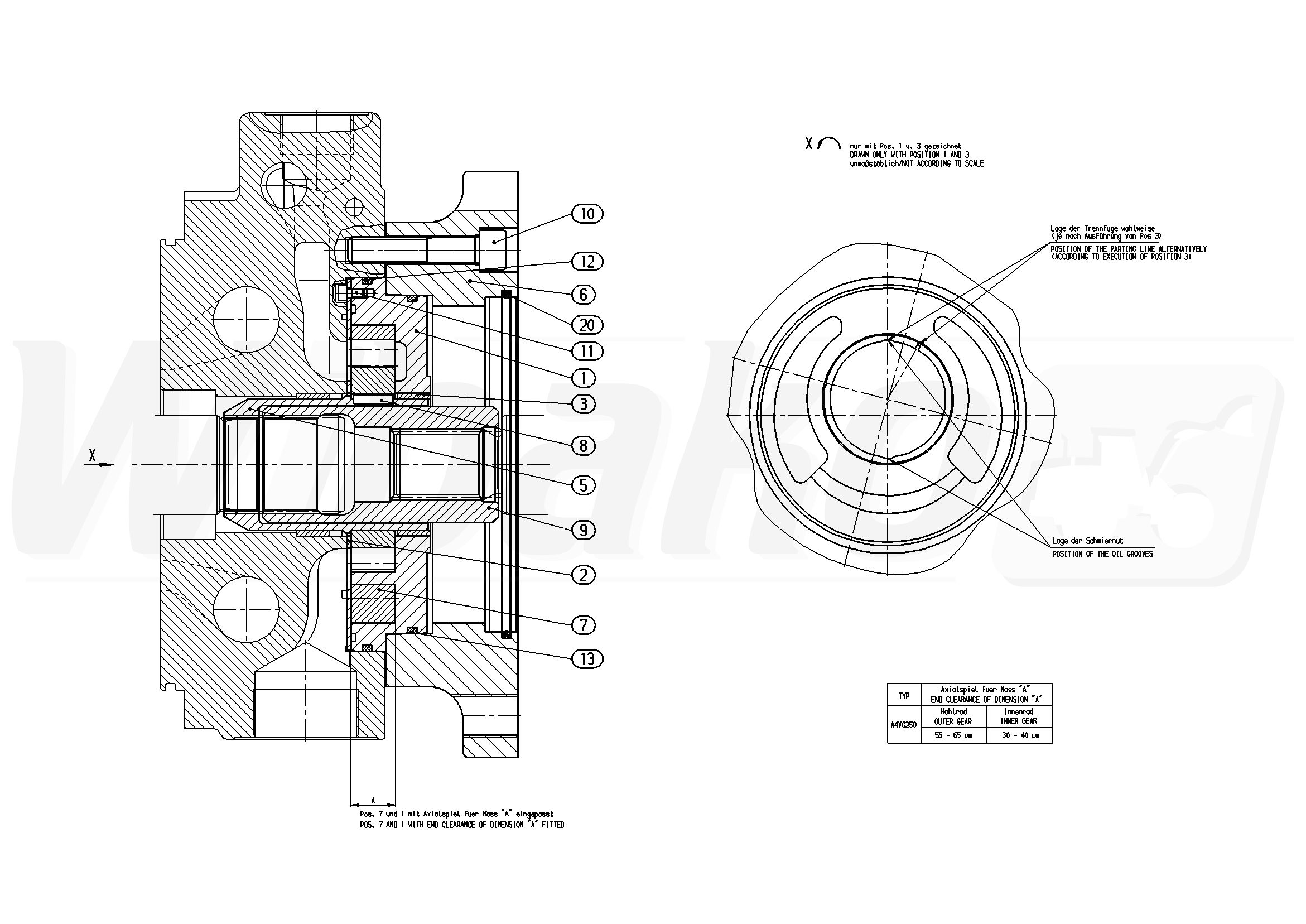

INTERNAL GEAR PUMP (69039)

INTERNAL GEAR PUMP
(69039)


1

HOUSING
(34387)


2

WEAR PLATE
(34388)


3

BUSHING
(34379)


5

PLUG-IN SHAFT
(34389)


6

INTERMEDIATE FLANGE
(34464)


7

WHEEL SET
(34391)


8

PARALLEL KEY
(34392)


9

COUPLING HUB
(69101)


10

SOCKET HEAD CAP SCREW
(12304)


11

SOCKET HEAD CAP SCREW
(12695)


12

O-RING
(10736)


13

O-RING
(16686)


20

O-RING
(26346)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
