A4VG250DE9DMT1/32R-VSD10N001EX-S (R902164402)

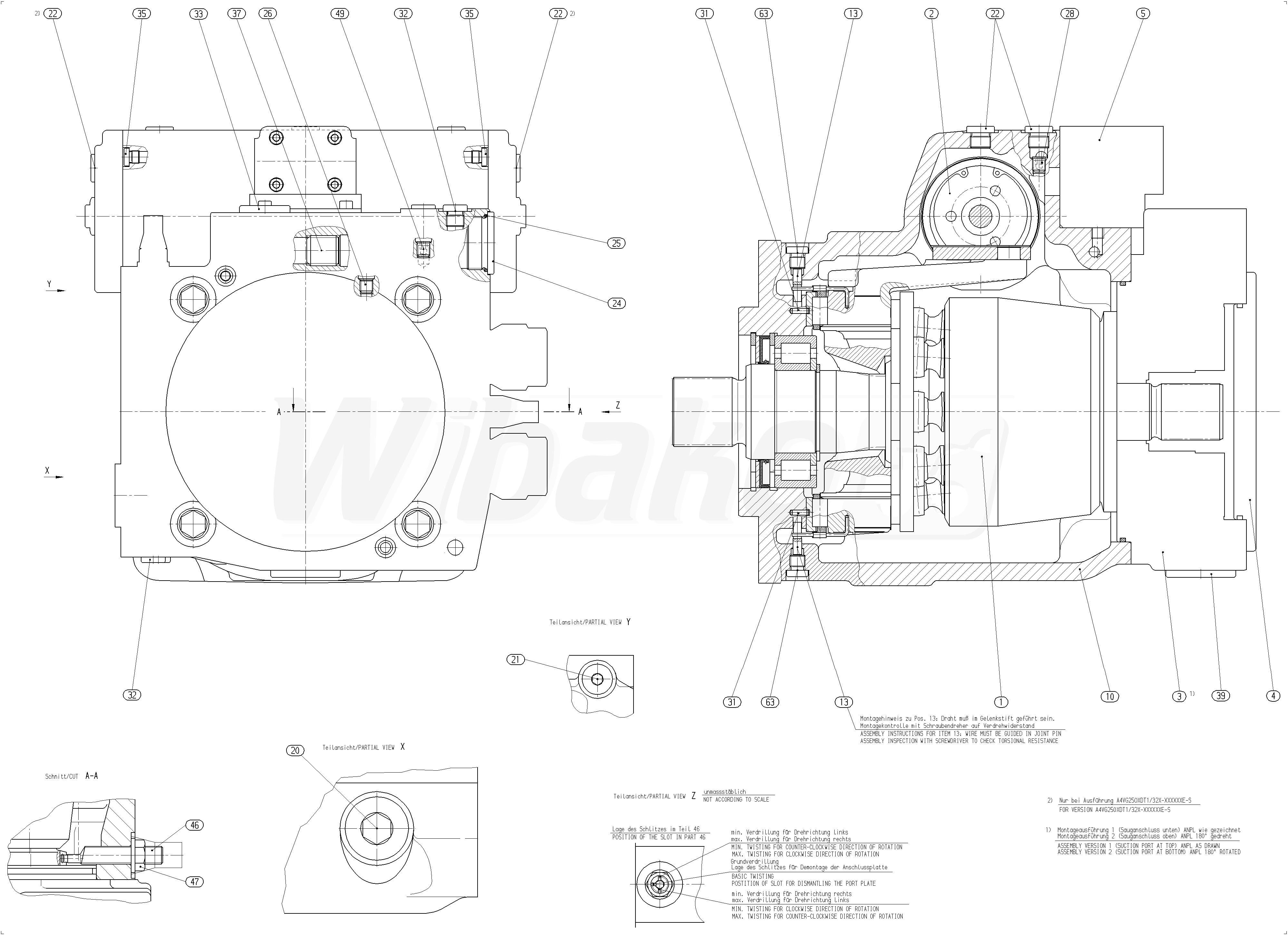

Axial piston variable pump A4VG. Geometric displacement 250 cm3. Pressure cut-off. Series 3, index 2. Direction of rotation (viewed on drive shaft): clockwise.
1

ROTARY GROUP
(70491)

Group »


2

CONTROL
(70486)

Group »


3

CONNECTION PLATE
(70487)

Group »


4

COVER
(70492)

Group »


5

DIRECTIONAL-CONTROL VALVE
(16989)

Group »


10

HOUSING
(34351)


13

PIVOT PIN
(12051)


20

SCREW PLUG
(69718)


21

SCREW PLUG
(11292)


22

SCREW PLUG
(15306)


24

SCREW PLUG
(13330)


25

O-RING
(16551)


26

PLUG
(16307)


31

SLOTTED SPRING PIN
(12545)


32

SCREW PLUG
(11348)


33

SCREW PLUG
(13831)


35

SCREW PLUG
(11659)


37

SETSCREW
(34435)


39

SCREW PLUG
(66113)


46

ECCENTRIC SCREW
(44597)


47

SEALING NUT
(12984)


49

NOZZLE
(14377)


63

SCREW PLUG
(11681)



Return
