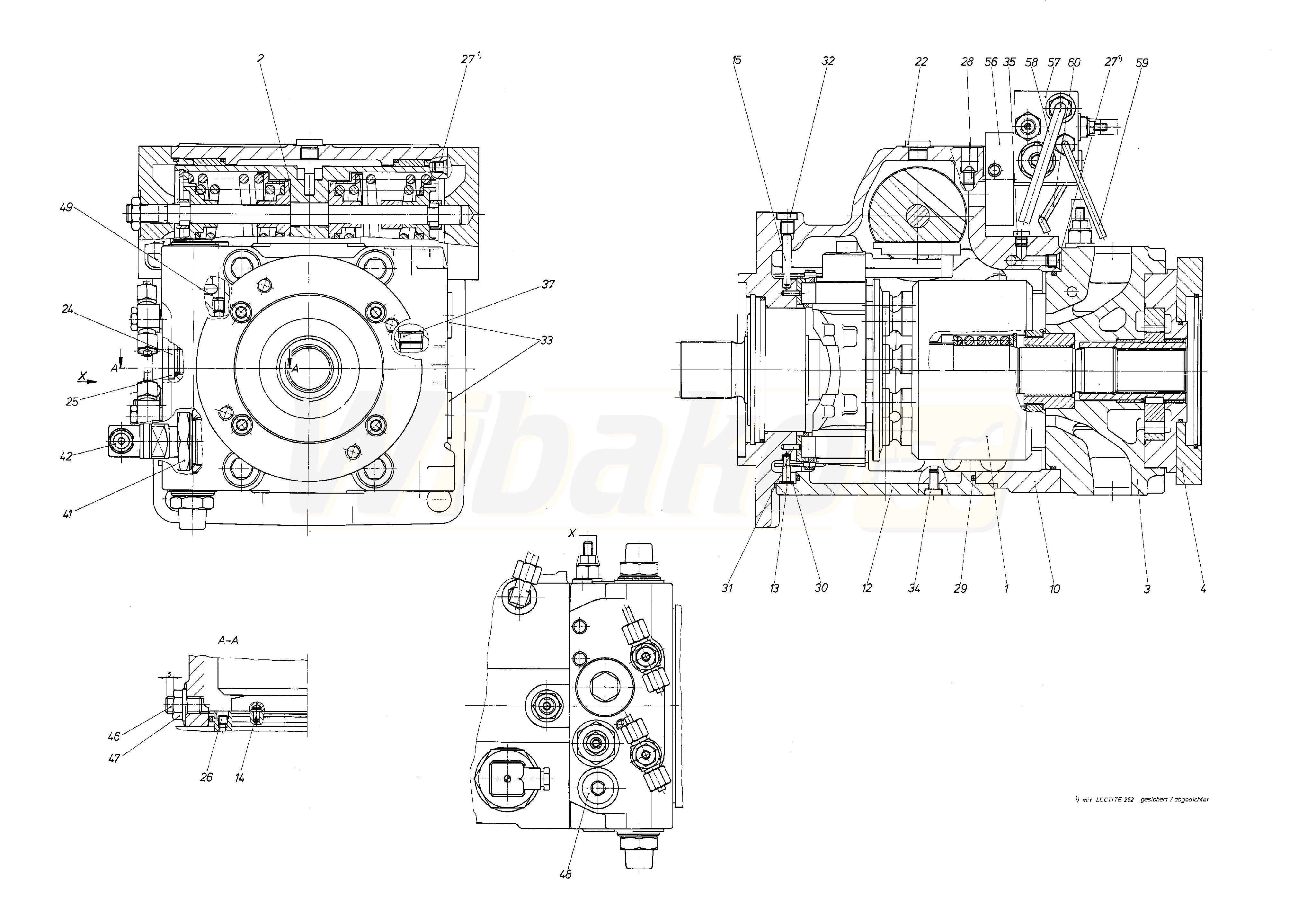

A4VG180MSD1/31L-PZD02FXX1D-S (R909434053)

1

ROTARY GROUP
(53424)

Group »


2

CONTROL
(43752)

Group »


3

CONNECTION PLATE
(53412)

Group »


4

INTERNAL GEAR PUMP
(72476)

Group »


10

HOUSING
(54044)


12

HOUSING COVER
(54045)


13

PIVOT PIN
(10973)


14

POITIONING PIN
(10183)


15

PIVOT PIN
(24782)


22

SCREW PLUG
(10395)


24

SCREW PLUG
(13330)


25

O-RING
(11174)


26

SCREW PLUG
(11753)


27

DOUBLE BREAK-OFF PLUG
(19010)


28

NOZZLE
(16992)


29

O-RING
(54046)


30

QUAD RING
(16507)


31

SLOTTED SPRING PIN
(12545)


32

SCREW PLUG
(10190)


33

SCREW PLUG
(11007)


34

SOCKET HEAD CAP SCREW
(10848)


35

SCREW PLUG
(10220)


37

SCREW PLUG
(13379)


41

THREADED REDUCING STUD
(66074)

Group »


42

POLLUTION SWITCH
(68979)


46

SETSCREW
(26369)


47

SEALING NUT
(12984)


48

SCREW PLUG
(10397)


49

NOZZLE
(14377)


56

CONNECTION PLATE
(49138)

Group »


57

TORQUE-PRESSURE CONTROL VALVE
(49837)

Group »


58

HYDRAULIC LINE
(72477)

Group »


59

HYDRAULIC LINE
(68729)

Group »


60

HYDRAULIC LINE
(68730)

Group »


98

SEAL KIT
(72711)
