A4VG28EP1/X+A4FM28/X-ECCOM1,5-DFA-W (R902047640)

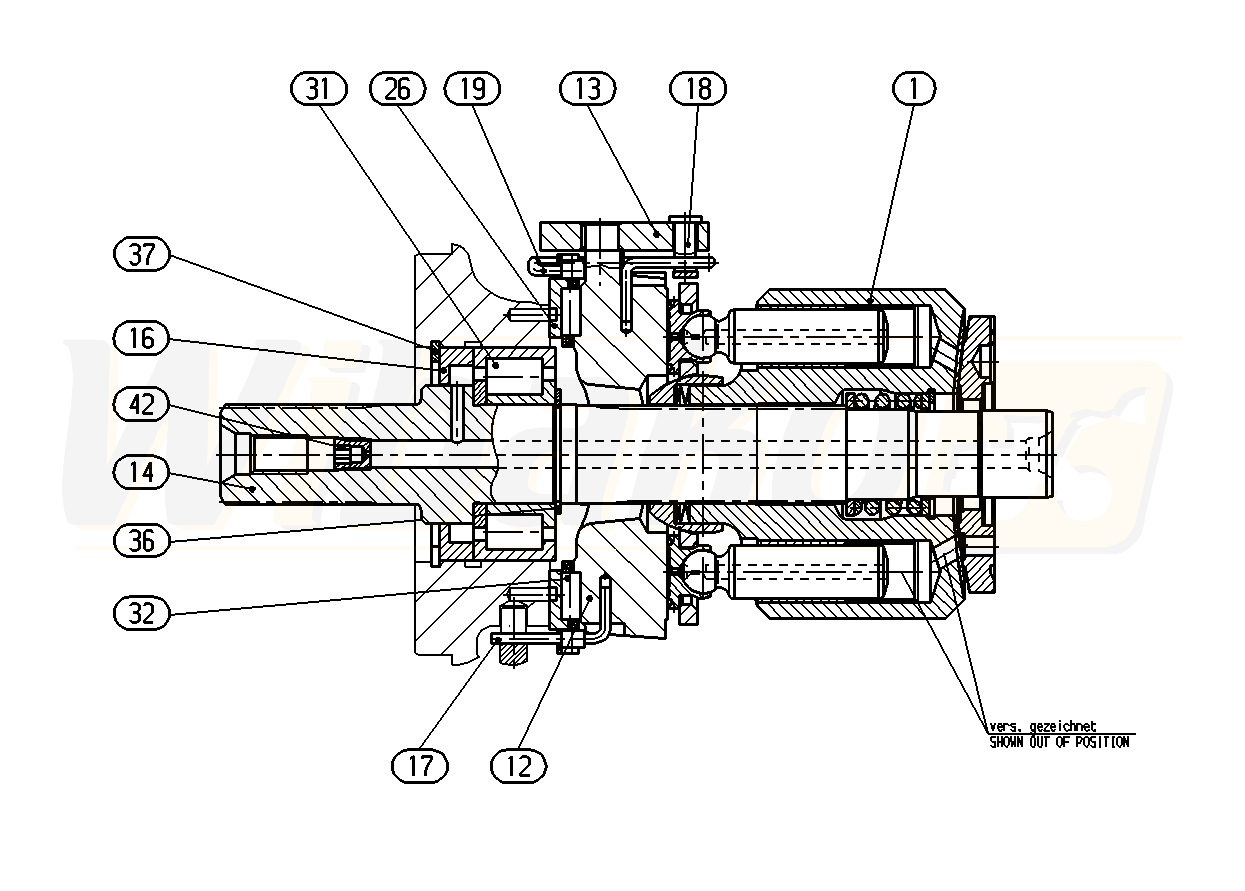

ROTARY GROUP (73107)

ROTARY GROUP
(73107)


1

ROTARY GROUP
(73108)

Group »


12

CRADLE
(73166)


13

SLIDER
(15699)


14

DRIVE SHAFT
(73167)


16

LOCKING RING
(73168)


17

WIRE
(12281)


18

PIVOT PIN
(10824)


19

WIRE
(15701)


26

BEARING SHELL PAIR
(12282)


31

CYL. ROLLER BEARING
(12283)


32

CAGE PAIR
(12284)


36

RETAINING RING
(10179)


37

RETAINING RING
(21936)


42

NOZZLE
(35413)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
