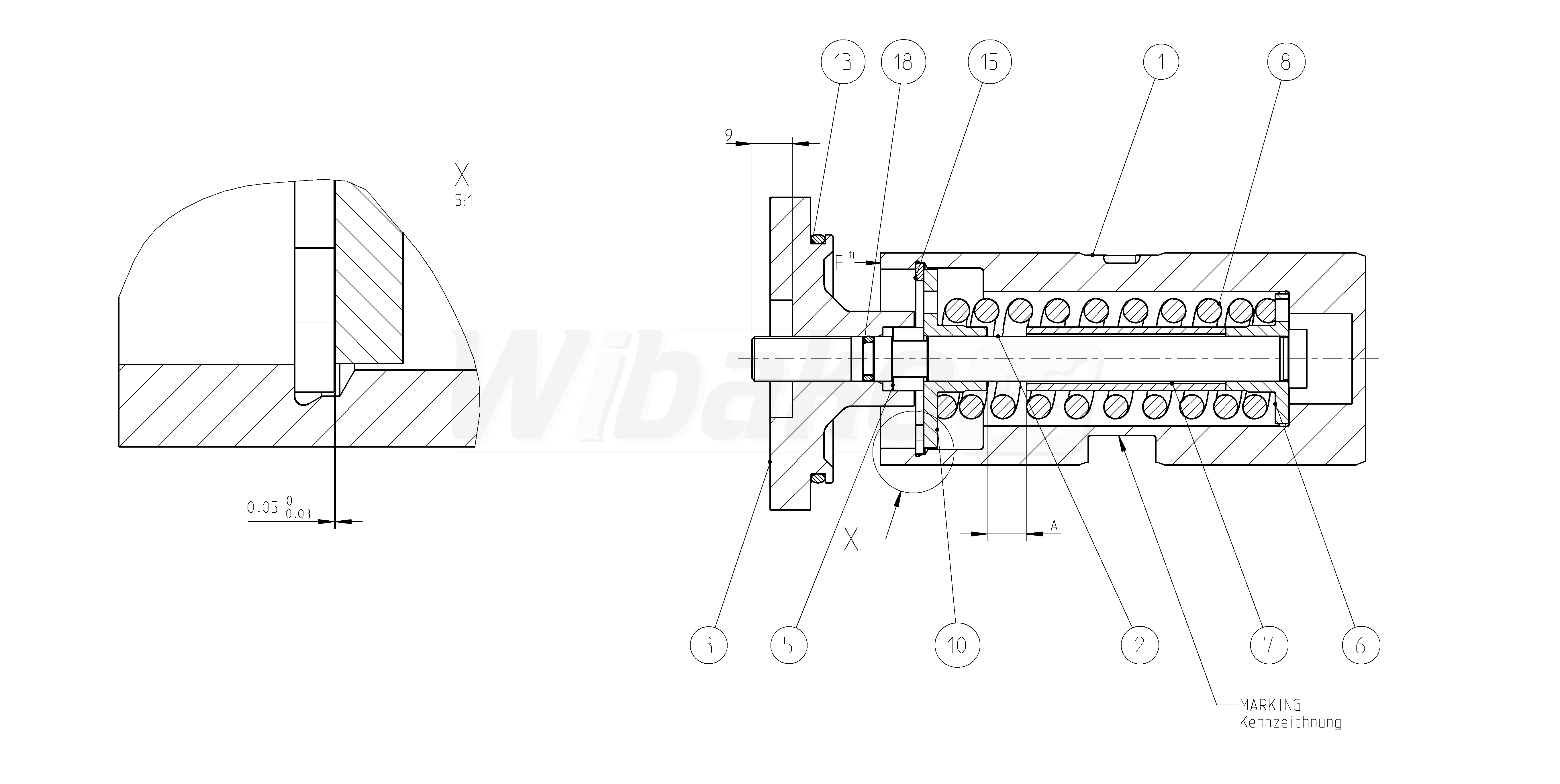

A4VG28EP1/X+A4FM28/X-ECCOM1,5-DFA-W (R902047640)
POSITIONING PISTON (73110)

POSITIONING PISTON
(73110)


1

POSITIONING PISTON
(15715)


2

ROD
(15716)


3

COVER
(55300)


5

RING
(13657)


5

RING
(13658)


5

RING
(13659)


5

RING
(13660)


5

RING
(13661)


5

RING
(13663)


5

RING
(13664)


6

SPRING DISK
(15718)


7

SPACER BUSHING
(72956)


7

SPACER BUSHING
(72955)


7

SPACER BUSHING
(72957)


7

SPACER BUSHING
(72958)


7

SPACER BUSHING
(73169)


7

SPACER BUSHING
(73170)


7

SPACER BUSHING
(73171)


8

COMPRESSION SPRING
(35189)


10

SPRING DISK
(15726)


13

O-RING
(15728)


15

RETAINING RING
(11789)


18

O-RING
(10370)
