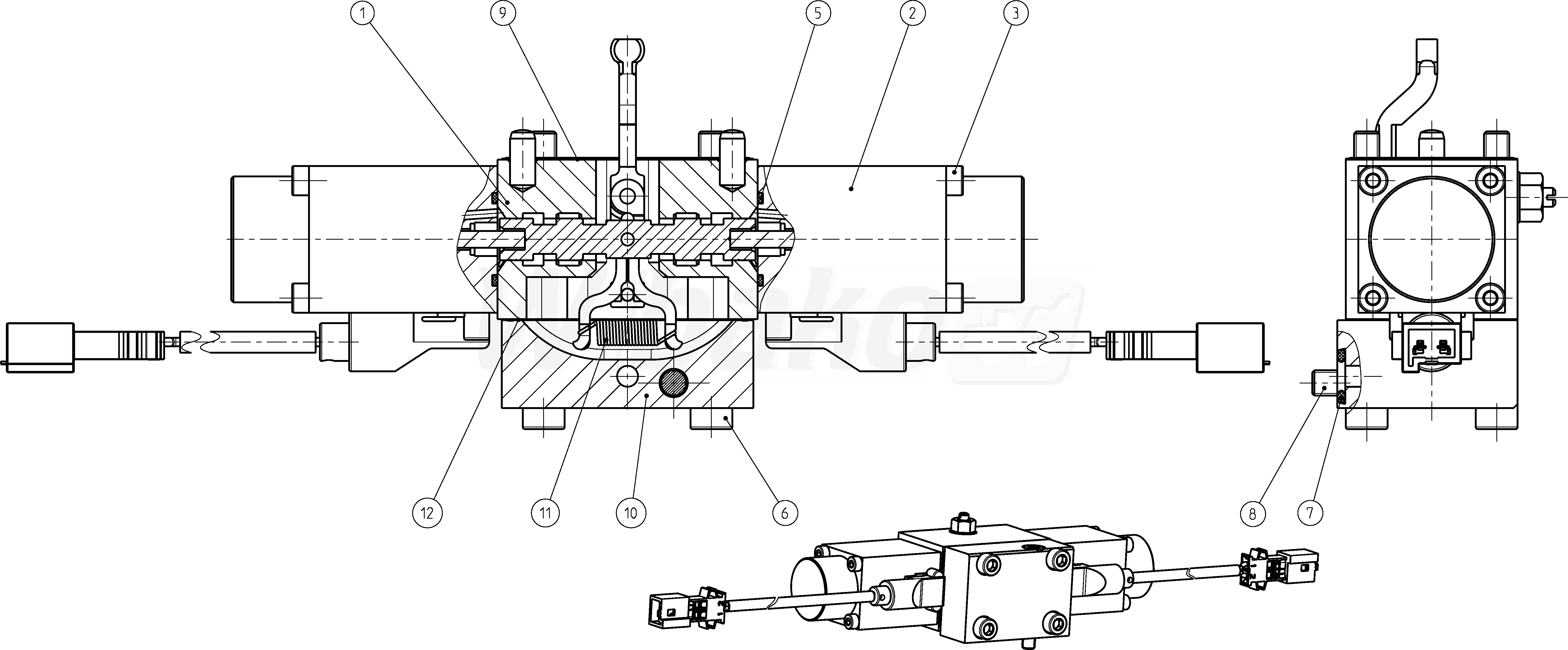

A4VG28EP1/X+A4FM28/X-ECCOM1,5-DFA-W (R902047640)
CONTROL MODULE (72910)

CONTROL MODULE
(72910)


1

BASIC UNIT
(72911)

Group »


2

PROPORTIONAL SOLENOID
(35220)


3

SOCKET HEAD CAP SCREW
(14209)


5

O-RING
(12696)


6

SOCKET HEAD CAP SCREW
(35221)


7

O-RING
(12860)


8

SOCKET HEAD CAP SCREW
(35222)


9

SEAL
(10783)


10

CONNECTION COVER
(13797)


11

EXTENSION SPRING
(35223)


12

SEAL
(13799)



Return
