A4VG28EP1/X+A4FM28/X-ECCOM1,5-DFA-W (R902047640)

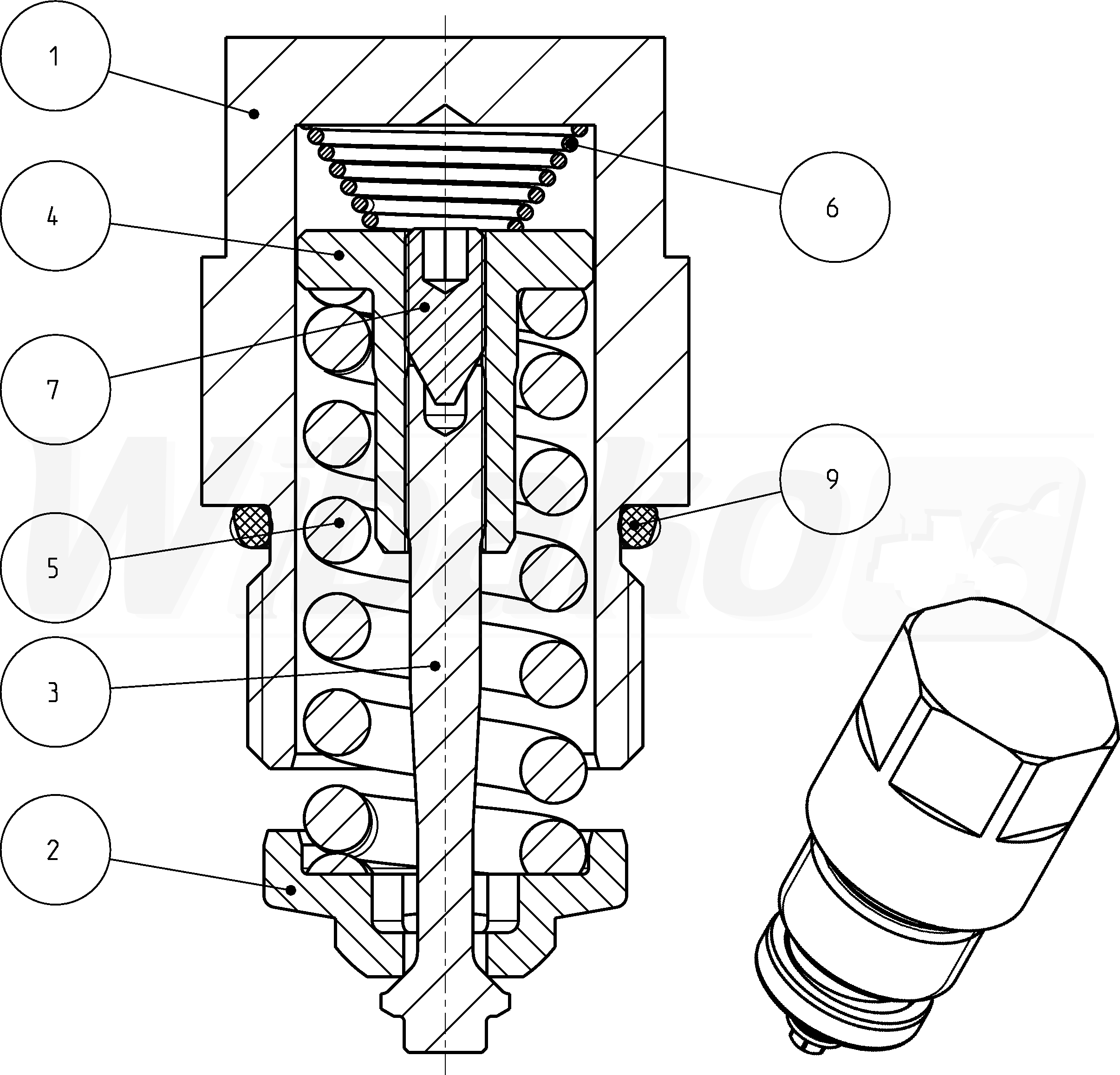

PRESSURE RELIEF VALVE (72934)

PRESSURE RELIEF VALVE
(72934)


1

SCREW PLUG
(29474)


2

VALVE PLATE
(10876)


3

VALVE STEM
(10877)


4

EXPANSION PIECE
(10878)


5

COMPRESSION SPRING
(10879)


6

COMPRESSION SPRING
(10880)


7

SETSCREW
(10881)


9

O-RING
(29476)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
