A4VG28EP1/X+A4FM28/X-ECCOM1,5-DFA-W (R902047640)

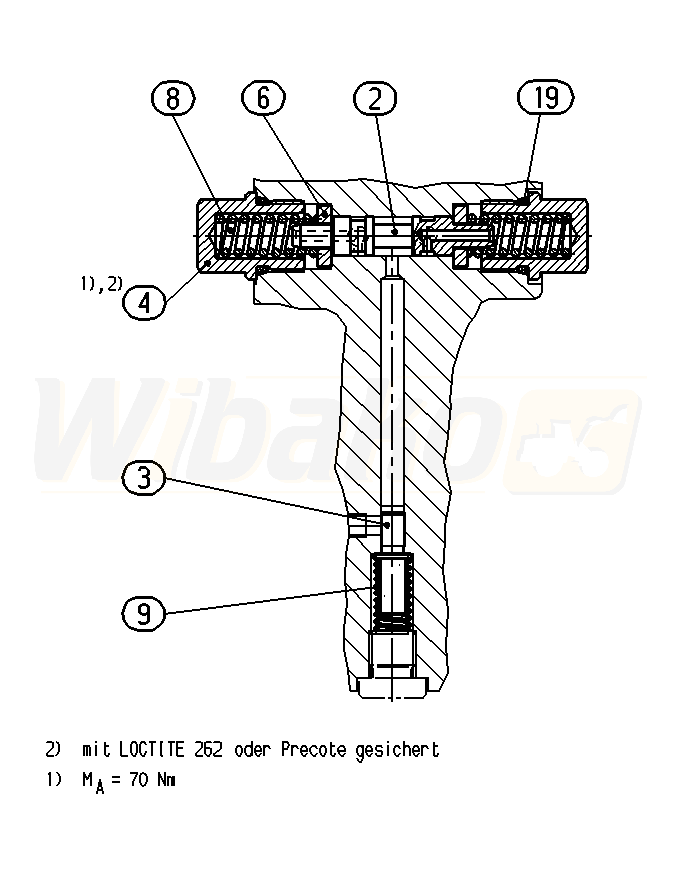

FLUSH/BOOST PRESSURE VALVE (35264)

FLUSH/BOOST PRESSURE VALVE
(35264)


2

FLUSHING PISTON
(35405)


3

VALVE SPOOL
(35406)


4

SCREW PLUG
(35407)


6

WASHER
(35408)


8

COMPRESSION SPRING
(35236)


9

COMPRESSION SPRING
(35237)


19

O-RING
(15628)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
