AA4VG56DA1D8/32R-NSCXXFXX5DC-S (R902075703)
Axial piston variable pump A4VG. Geometric displacement 56 cm3. Automatic control, speed related U = 12 V. Pressure cut-off. DA control valve, fixed setting and brake inch valve mounted, control with brake fluid based on mineral oil. Series 3, index 2. Direction of rotation (viewed on drive shaft): clockwise. Sealing material: NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer). Splined shaft ANSI B92.1a for single pump. Mounting flange SAE J744 2-hole.

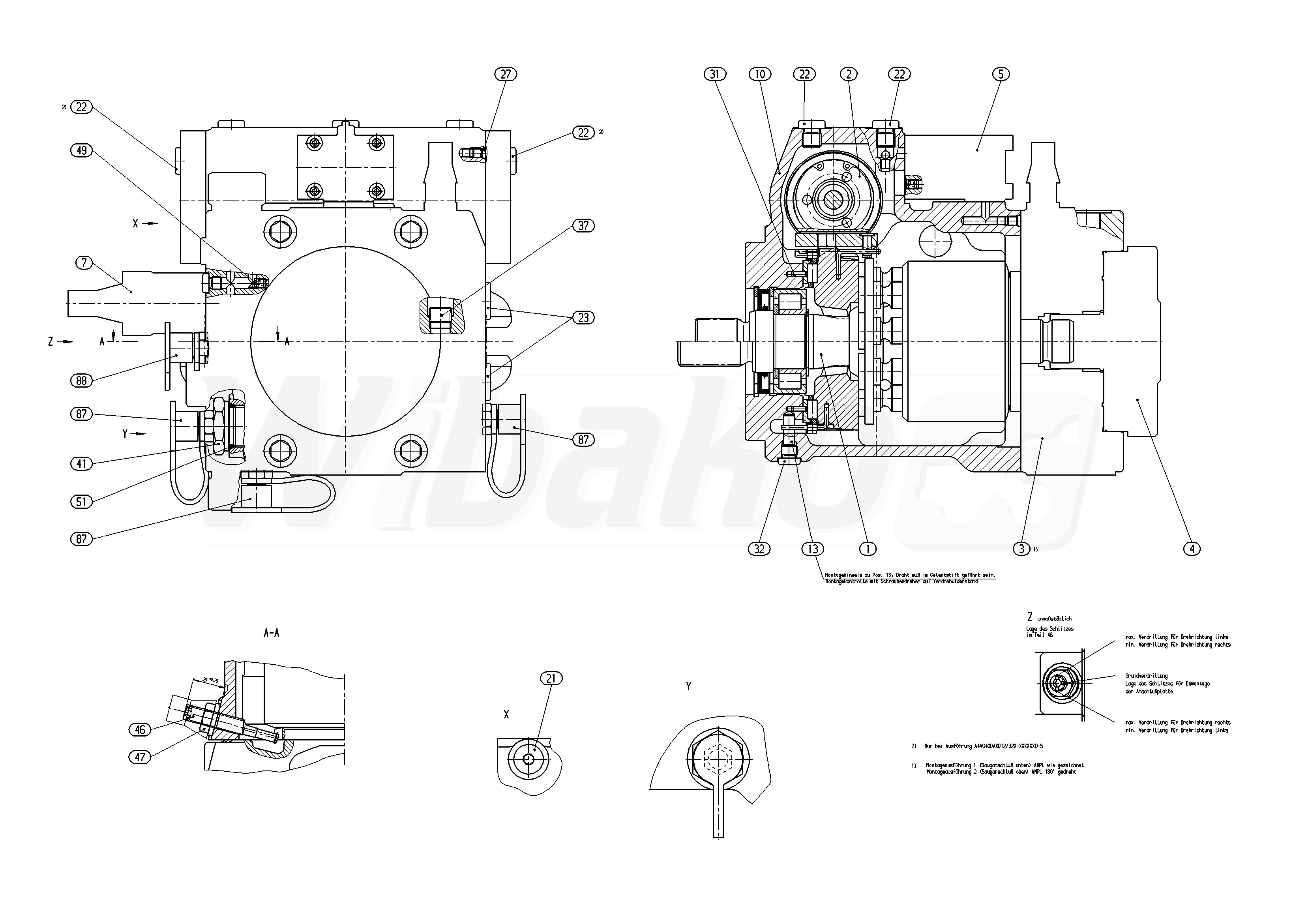

The above diagrams belong to Rexroth www.boschrexroth.com
