AA4VG56DGMT1/32R-NSCXXK073E-S (R902078258)

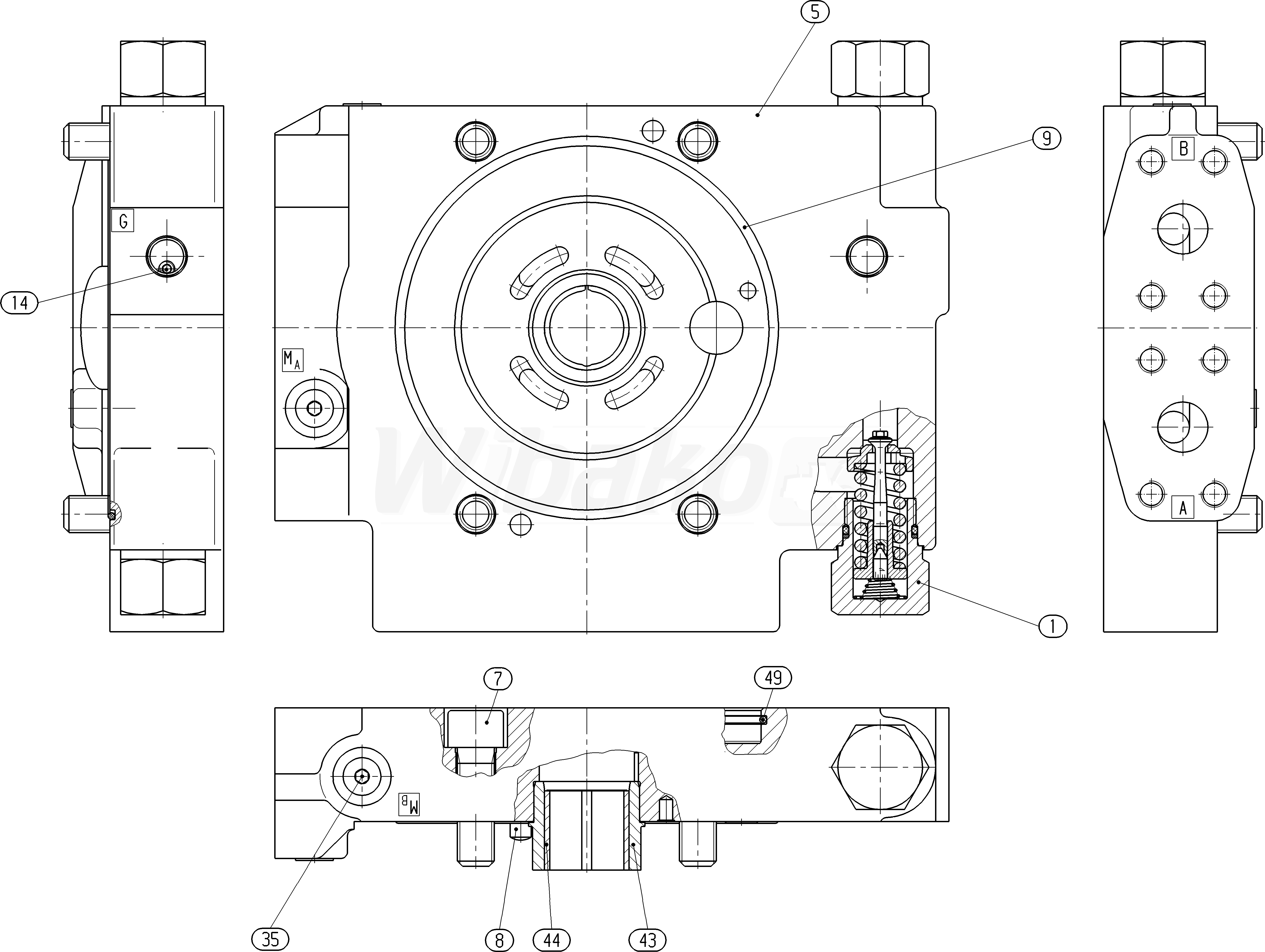

CONNECTION PLATE (25591)

CONNECTION PLATE
(25591)


1

PRESSURE RELIEF VALVE
(12208)

Group »


5

CONNECTION PLATE
(25600)


7

SOCKET HEAD CAP SCREW
(21674)


8

STRAIGHT PIN
(10869)


9

O-RING
(10870)


14

SETSCREW
(11173)


35

SCREW PLUG
(11370)


43

BUSHING
(21675)


44

BUSHING
(18567)


49

O-RING



Return

The above diagrams belong to Rexroth www.boschrexroth.com
