A4VG71EP4D1/32R-NSF02F001DH-S (R902112398)

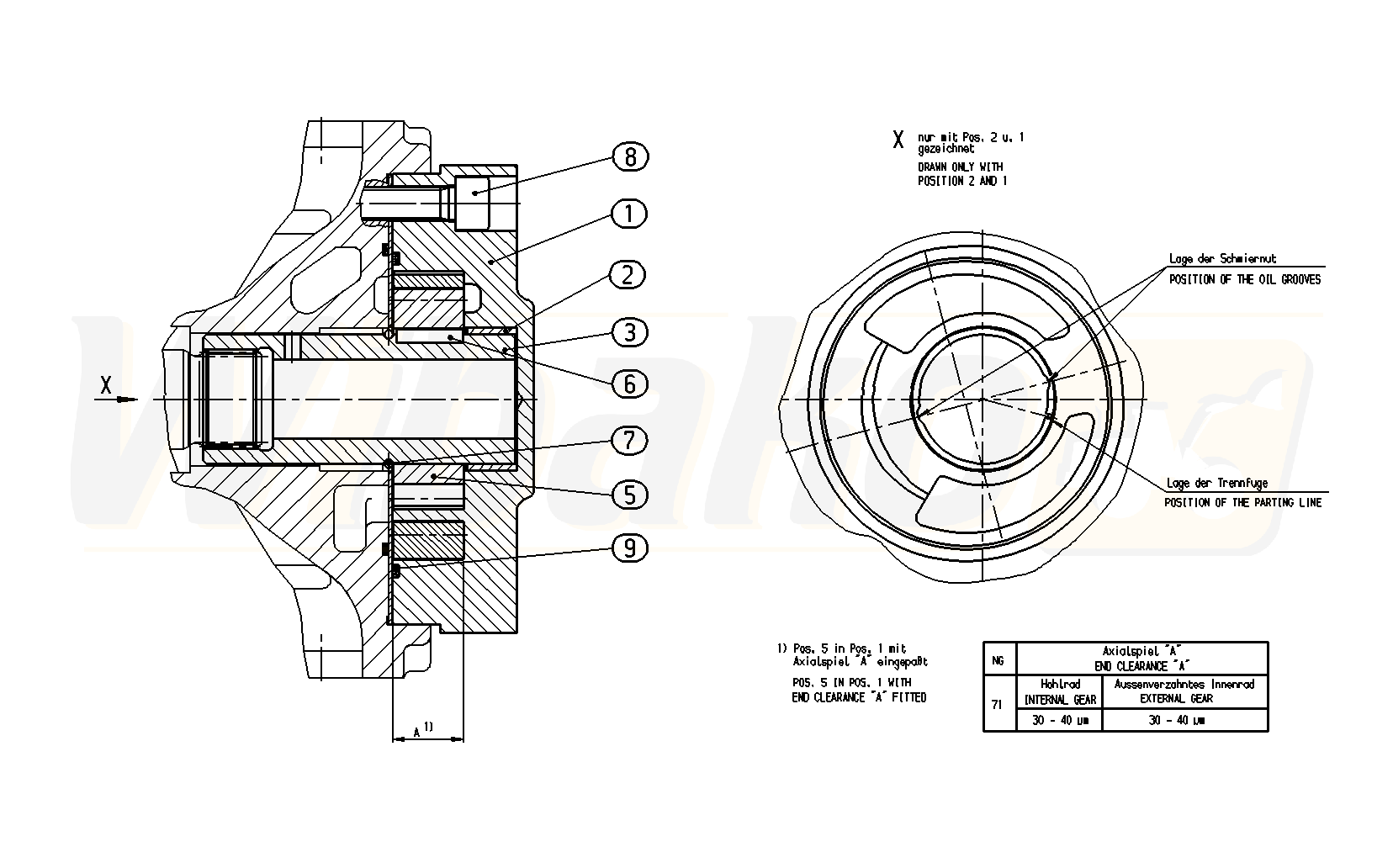

INTERNAL GEAR PUMP (76329)

INTERNAL GEAR PUMP
(76329)


1

PUMP COVER
(12796)


2

BUSHING
(19095)


3

PLUG-IN SHAFT
(76330)


5

WHEEL SET
(12798)


6

PARALLEL KEY
(12799)


7

SNAP RING
(10491)


8

SOCKET HEAD CAP SCREW
(11553)


9

O-RING
(10671)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
