AA4VG56DGMT1/32R-NSCXXK073E-S (R902080319)

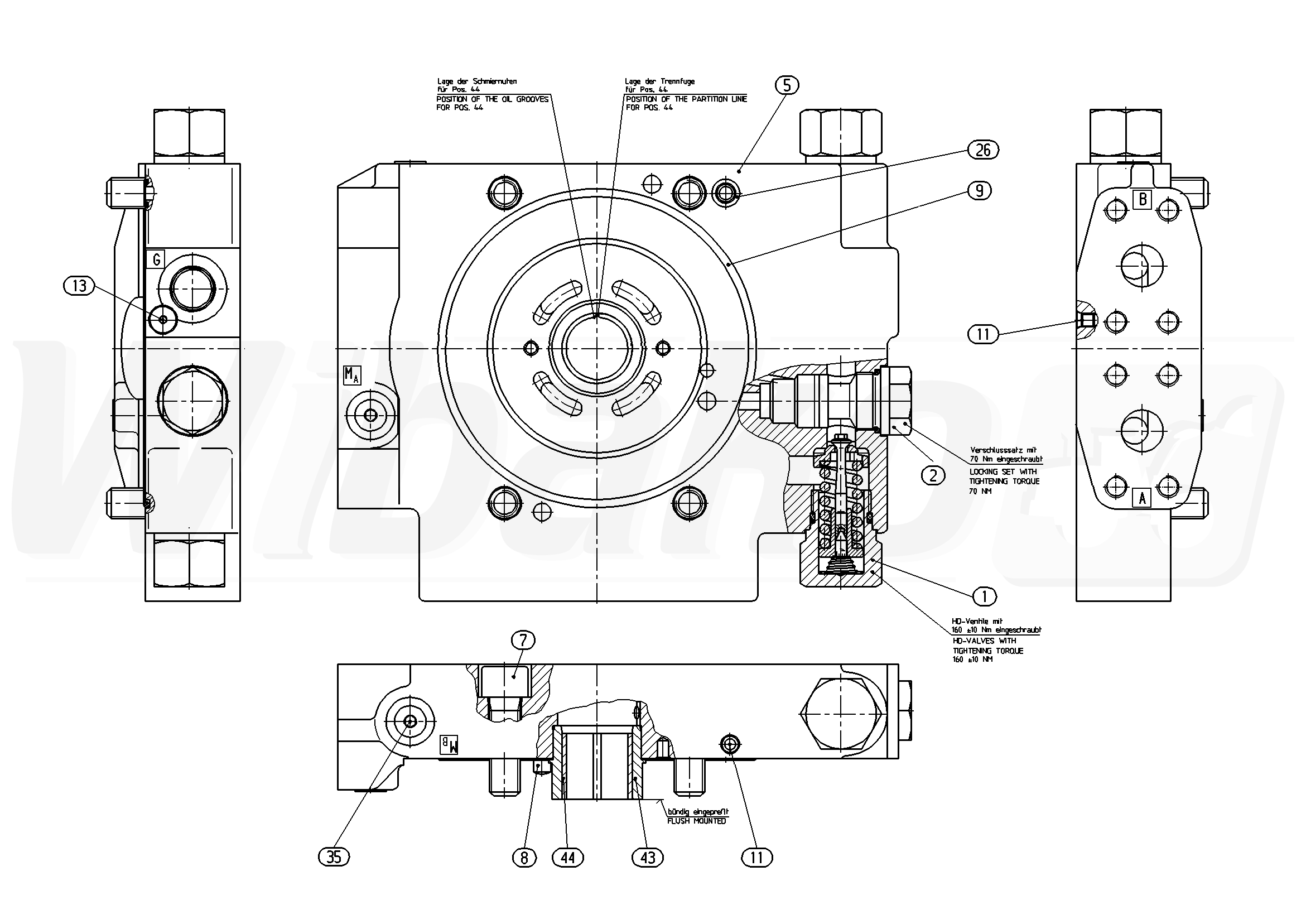

CONNECTION PLATE (25672)

CONNECTION PLATE
(25672)


1

PRESSURE RELIEF VALVE
(12208)

Group »


2

LOCKING SET
(17500)


5

CONNECTION PLATE
(25675)


7

SOCKET HEAD CAP SCREW
(21674)


8

STRAIGHT PIN
(10869)


9

O-RING
(10870)


11

DOUBLE BREAK-OFF PLUG


13

SCREW PLUG
(10330)


26

O-RING
(10227)


35

SCREW PLUG
(11371)


43

BUSHING
(21675)


44

BUSHING
(18567)


49

O-RING



Return

The above diagrams belong to Rexroth www.boschrexroth.com
