A8VO107LR3DCH1/60R1-PZGO5K01*SV* (R909427445)

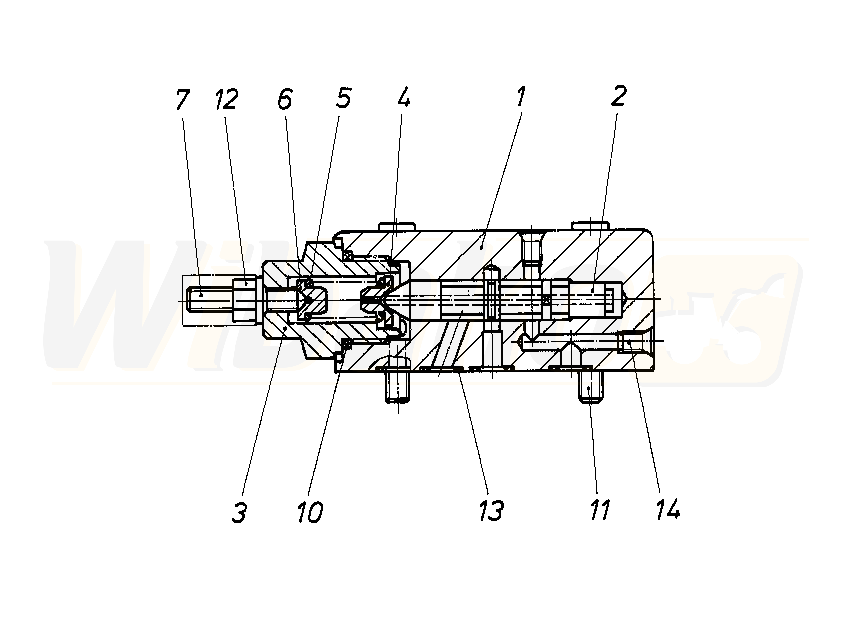

SEQUENCE VALVE (79738)

SEQUENCE VALVE
(79738)


1

HOUSING
(79755)


2

CONTROL PISTON
(79756)


3

SCREW PLUG
(79757)


4

SPRING DISK
(79748)


5

COMPRESSION SPRING
(79749)


6

SPRING DISK
(79750)


7

SETSCREW
(11074)


10

O-RING
(10214)


11

SOCKET HEAD CAP SCREW
(14633)


12

SEALING NUT
(10369)


13

O-RING
(11087)


14

DOUBLE BREAK-OFF PLUG
(19008)
