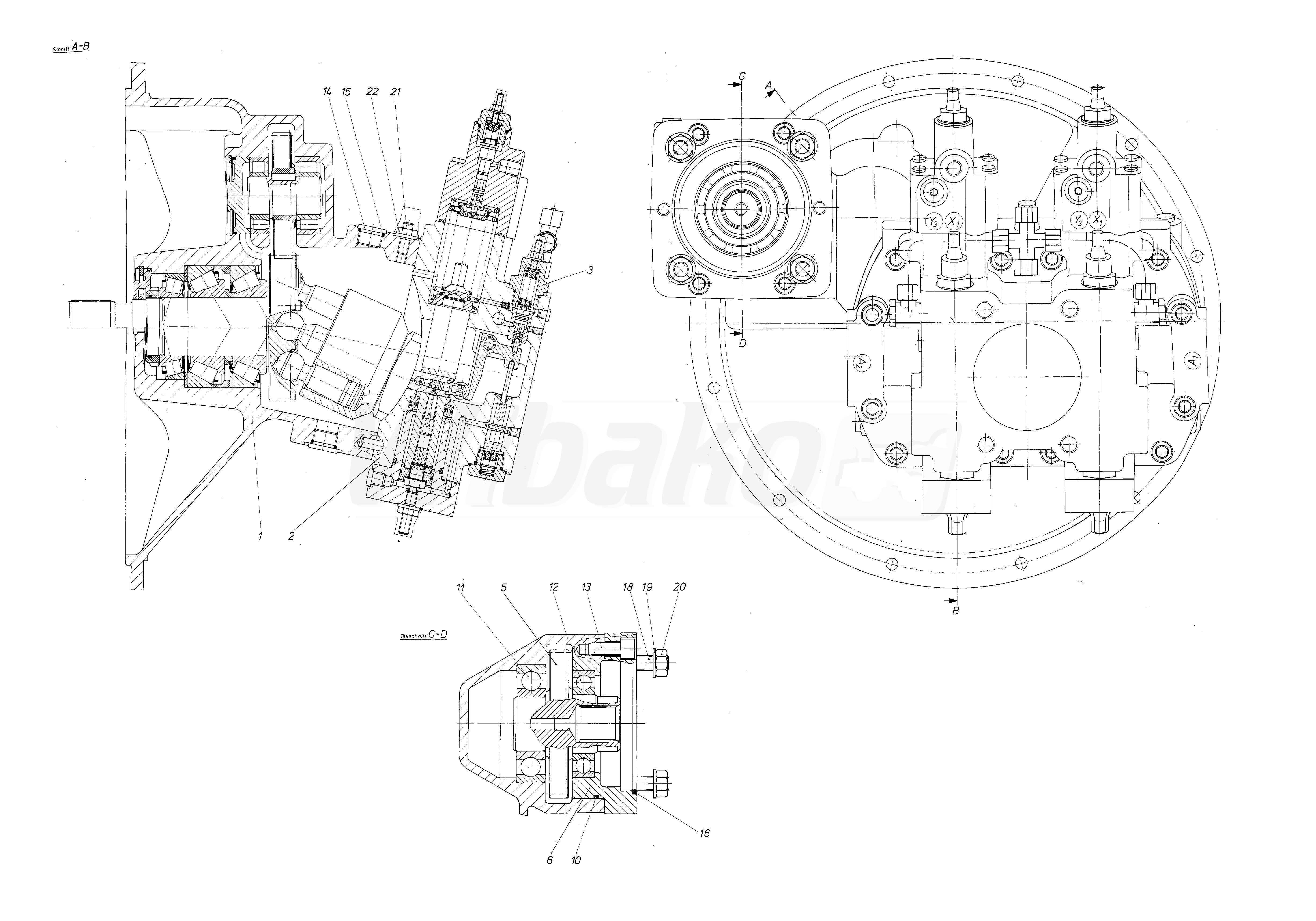

A8VO107LR3H2/60R1-NZG05K39 (R909428515)

1

AXIAL-PISTON PUMP
(12131)

Group »


2

CONTROL
(79825)

Group »


5

TOOTHED WHEEL
(14862)


6

FLANGE
(79768)


10

O-RING
(28550)


11

DEEP-GROOVE BALL BEARING
(12179)


12

DEEP-GROOVE BALL BEARING
(12180)


13

SOCKET HEAD CAP SCREW
(10164)


14

SCREW PLUG
(10258)


15

O-RING
(10214)


16

O-RING
(28120)


18

STUD
(79769)


19

WASHER
(12733)


1


(12131)

Group »


2


(79825)

Group »


5


(14862)


6


(79768)


10


(28550)


11


(12179)


12


(12180)


13


(10164)


14


(10258)


15


(10214)


16


(28120)


20

HEXAGON NUT
(72944)


21

SETSCREW
(10259)


22

SEALING NUT
(10218)


20


(72944)



Return
