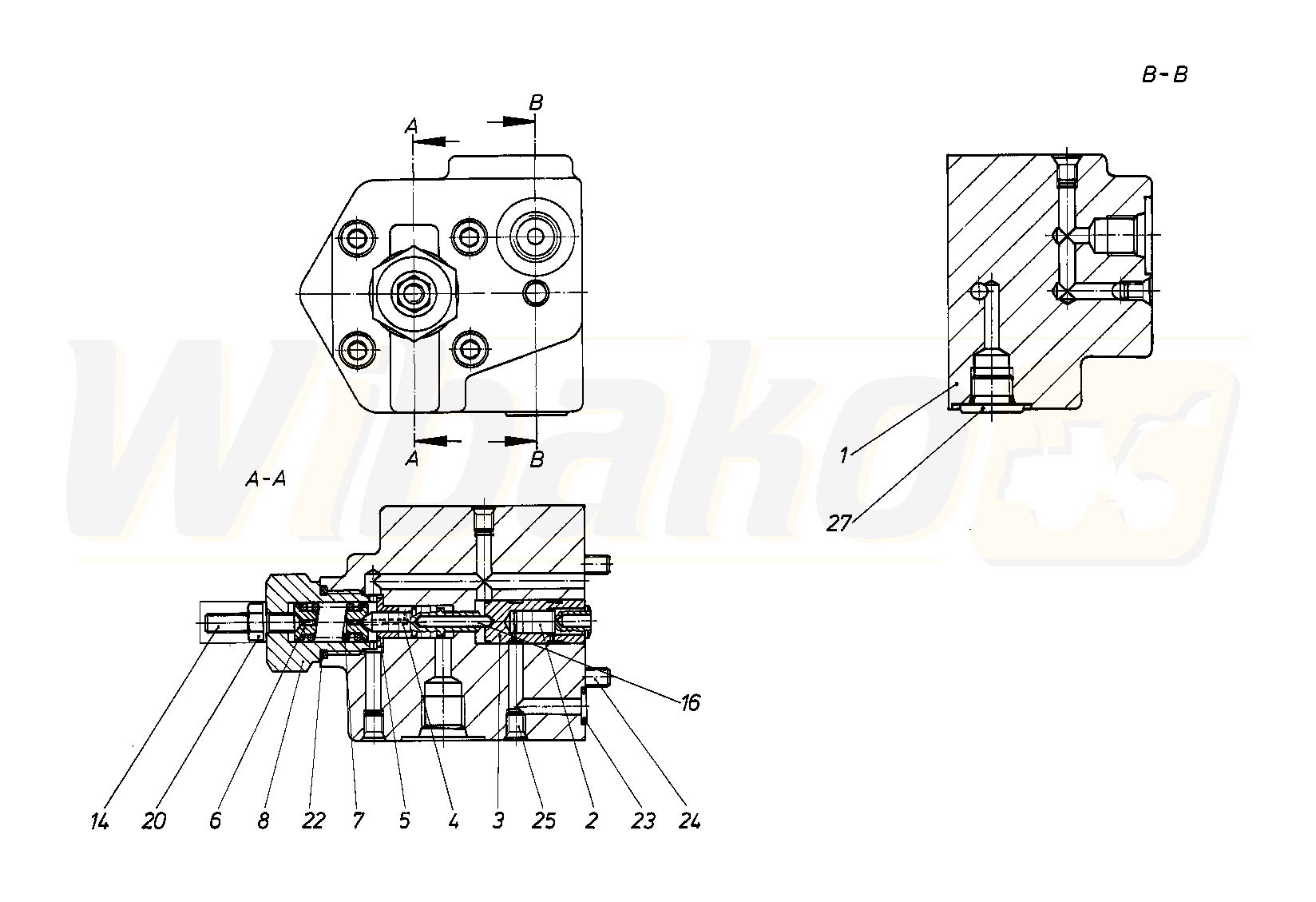

A8VO107LR3H1/60R1-SO (R909428368)
CONTROL UNIT (79834)

CONTROL UNIT
(79834)


1

CONTROL HOUSING
(79842)


2

CONTROL PISTON
(13625)


3

CONTROL SLEEVE
(79843)


4

POSITIONING PISTON
(79844)


5

GUIDE BUSHING
(79845)


6

SPRING DISK
(13571)


7

COMPRESSION SPRING
(13628)


8

SCREW PLUG
(49549)


14

SETSCREW
(11074)


16

PIN
(11085)


20

SEALING NUT
(10369)


22

O-RING
(10771)


23

O-RING
(11087)


24

SOCKET HEAD CAP SCREW
(12219)


25

DOUBLE BREAK-OFF PLUG
(18990)


27

SCREW PLUG
(11370)
