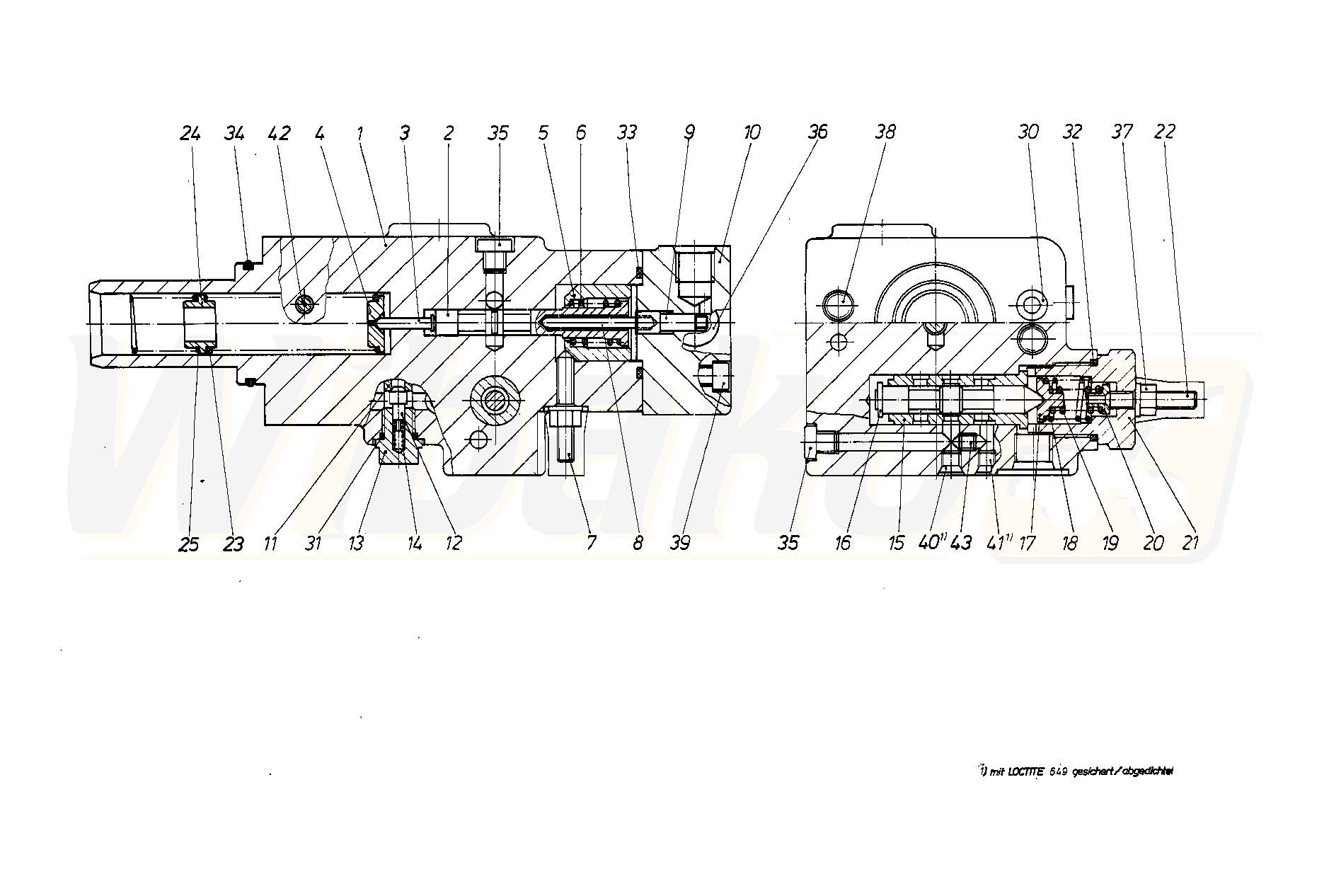

A8VO107LR3S/60R1-SO*G* (R909428894)
CONTROL MODULE (79857)

CONTROL MODULE
(79857)


1

CONTROL HOUSING
(79863)


2

CONTROL PISTON
(79864)


3

PIN
(12012)


4

SPRING DISK
(79865)


5

SPRING BUSH
(11604)


6

COMPRESSION SPRING
(79866)


7

SETSCREW
(11063)


8

PIN
(79867)


9

CONTROL PISTON
(79868)


10

SEALING COVER
(79869)


11

BUSHING
(11569)


12

VALVE CONE
(12018)


13

SCREW PLUG
(78217)


14

COMPRESSION SPRING
(78216)


15

CONTROL SLEEVE
(11226)


16

CONTROL PISTON
(79870)


17

SPRING DISK
(11229)


18

COMPRESSION SPRING
(11231)


19

COMPRESSION SPRING
(17530)


20

SPRING DISK
(11239)


21

SCREW PLUG
(79871)


22

SETSCREW
(11208)


23

COMPRESSION SPRING
(79872)


24

SPRING DISK
(79873)


25

COMPRESSION SPRING
(79874)


30

O-RING
(11087)


31

O-RING
(10332)


32

O-RING
(10470)


33

O-RING
(11969)


34

O-RING
(11174)


35

SCREW PLUG
(10330)


36

SCREW PLUG
(11370)


37

SEALING NUT
(10369)


38

SOCKET HEAD CAP SCREW
(19534)


39

SOCKET HEAD CAP SCREW
(11853)


40

DOUBLE BREAK-OFF PLUG
(19009)


41

DOUBLE BREAK-OFF PLUG
(18990)


42

NOZZLE
(10073)


43

SETSCREW
(10336)
