A8VO107LR3DS/60R1-PZG05K02*SV* (R909429190)

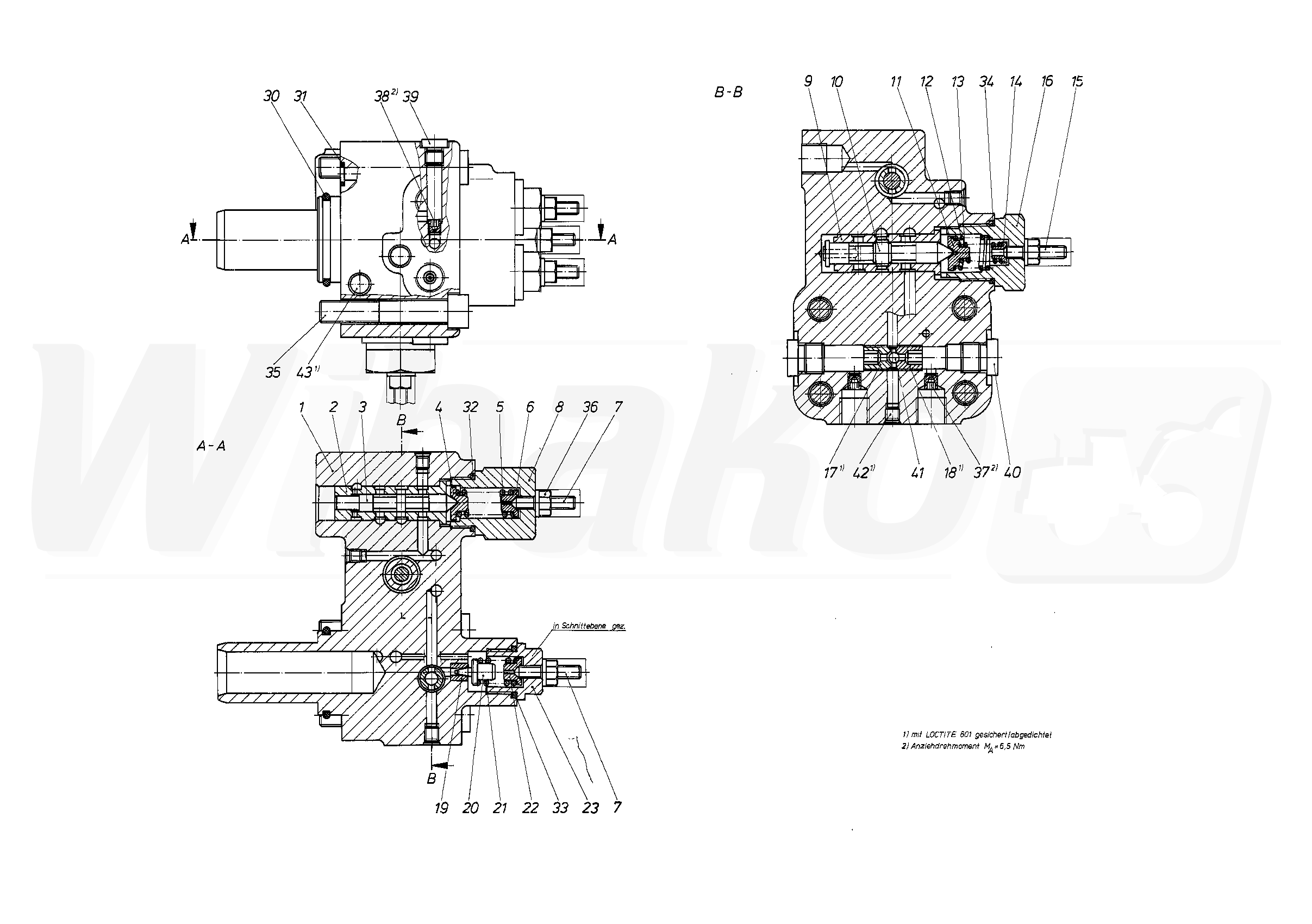

CONTROL MODULE (79887)

CONTROL MODULE
(79887)


1

CONTROL HOUSING
(79891)


2

CONTROL SLEEVE
(79892)


3

CONTROL PISTON
(79893)


4

SPRING DISK
(11081)


5

COMPRESSION SPRING
(12033)


6

SPRING DISK
(11237)


7

SETSCREW
(11074)


8

SCREW PLUG
(20071)


9

CONTROL SLEEVE
(11226)


10

CONTROL PISTON
(11227)


11

SPRING DISK
(11229)


12

COMPRESSION SPRING
(11231)


13

COMPRESSION SPRING
(17530)


14

SPRING DISK
(11239)


15

SETSCREW
(11208)


16

SCREW PLUG
(79871)


17

VALVE PIN
(11232)


18

VALVE PIN
(11233)


19

BUSHING
(11234)


20

VALVE CONE
(79894)


21

COMPRESSION SPRING
(11236)


22

SPRING DISK
(11237)


23

SCREW PLUG
(10360)


30

O-RING
(11174)


31

O-RING
(11087)


32

O-RING
(10377)


33

O-RING
(10214)


34

O-RING
(10470)


35

SOCKET HEAD CAP SCREW
(15248)


36

SEALING NUT
(10369)


37

NOZZLE
(10619)


38

NOZZLE
(10073)


39

SCREW PLUG
(10330)


40

SCREW PLUG
(10015)


41

BALL
(11069)


42

DOUBLE BREAK-OFF PLUG
(18990)


43

DOUBLE BREAK-OFF PLUG
(19009)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
