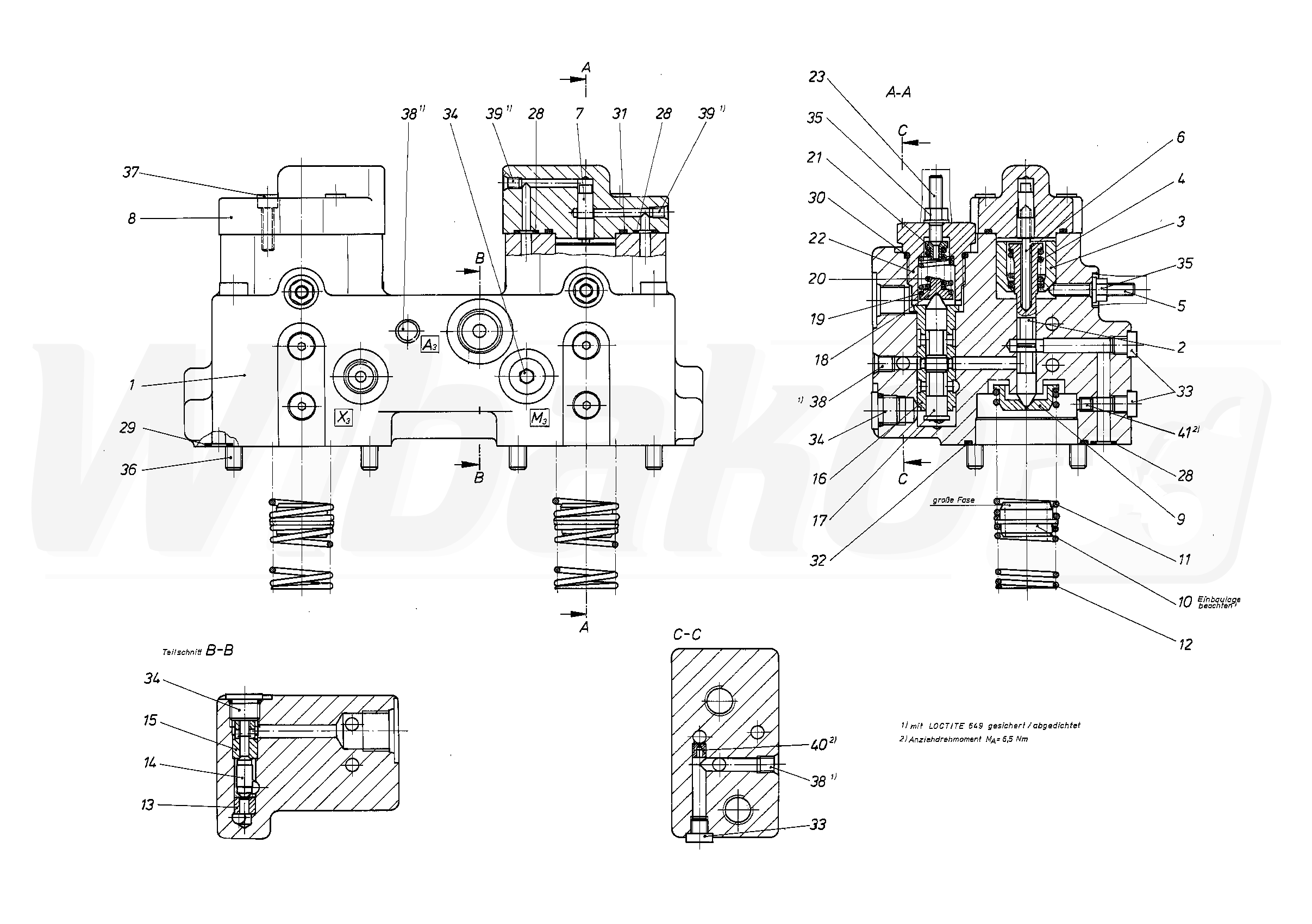

A8VO107LR3S/60R1-SO*SV* (R909429765)
CONTROL MODULE (79917)

CONTROL MODULE
(79917)


1

CONTROL HOUSING
(79919)


2

CONTROL PISTON
(11603)


3

SPRING BUSH
(11604)


4

COMPRESSION SPRING
(79866)


5

SETSCREW
(11063)


6

PIN
(12004)


7

CONTROL PISTON
(79920)


8

SEALING COVER
(79921)


9

SPRING DISK
(79922)


10

SPRING DISK
(79923)


11

COMPRESSION SPRING
(14470)


12

COMPRESSION SPRING
(79924)


13

BUSHING
(11569)


14

VALVE CONE
(11570)


15

VALVE BUSHING
(11571)


16

CONTROL SLEEVE
(11226)


17

CONTROL PISTON
(79870)


18

SPRING DISK
(11229)


19

COMPRESSION SPRING
(11231)


20

COMPRESSION SPRING
(17530)


21

SPRING DISK
(11239)


22

SCREW PLUG
(79871)


23

SETSCREW
(11208)


28

O-RING
(11087)


29

O-RING
(10227)


30

O-RING
(10470)


31

O-RING
(11086)


32

O-RING
(11186)


33

SCREW PLUG
(10330)


34

SCREW PLUG
(11370)


35

SEALING NUT
(10369)


36

SOCKET HEAD CAP SCREW
(10960)


37

SOCKET HEAD CAP SCREW
(10506)


38

DOUBLE BREAK-OFF PLUG
(19009)


39

DOUBLE BREAK-OFF PLUG
(19008)


40

NOZZLE
(10073)


41

SETSCREW
(10336)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
