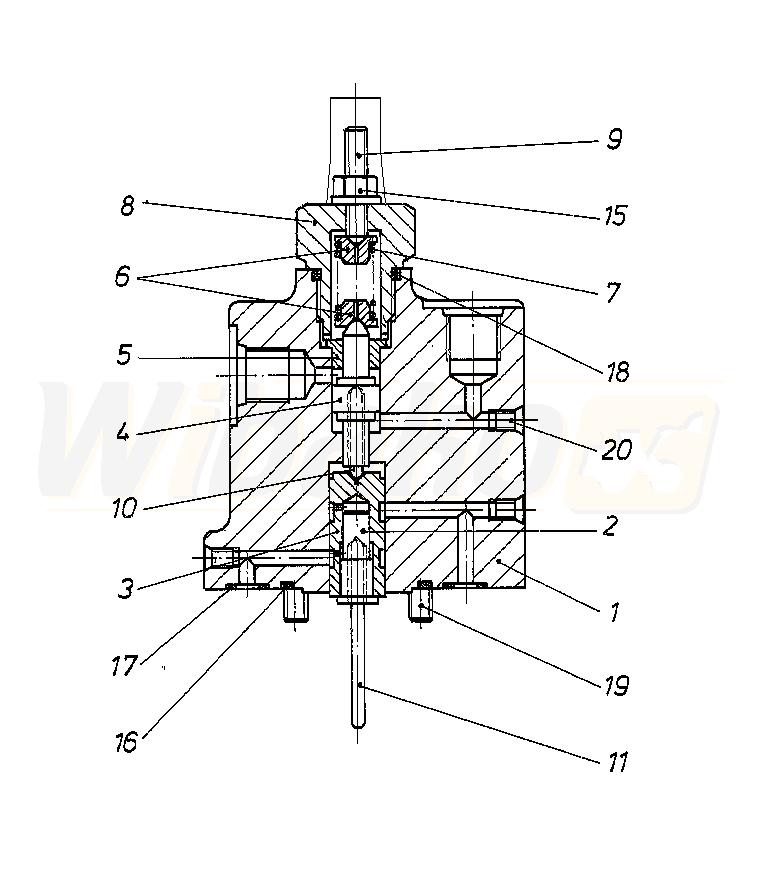

A8VO107LGEH3/60R1-433337*SV* (R909433337)
CONTROL MODULE (79949)

CONTROL MODULE
(79949)


1

CONTROL HOUSING
(79954)


2

CONTROL PISTON
(13625)


3

CONTROL SLEEVE
(79843)


4

POSITIONING PISTON
(79955)


5

GUIDE BUSHING
(79956)


6

SPRING DISK
(13571)


7

COMPRESSION SPRING
(13628)


8

SCREW PLUG
(49549)


9

SETSCREW
(11074)


10

PIN
(11085)


11

PIN
(11607)


15

SEALING NUT
(10369)


16

O-RING
(11086)


17

O-RING
(11087)


18

O-RING
(10771)


19

SOCKET HEAD CAP SCREW
(10785)


20

DOUBLE BREAK-OFF PLUG
(19008)
