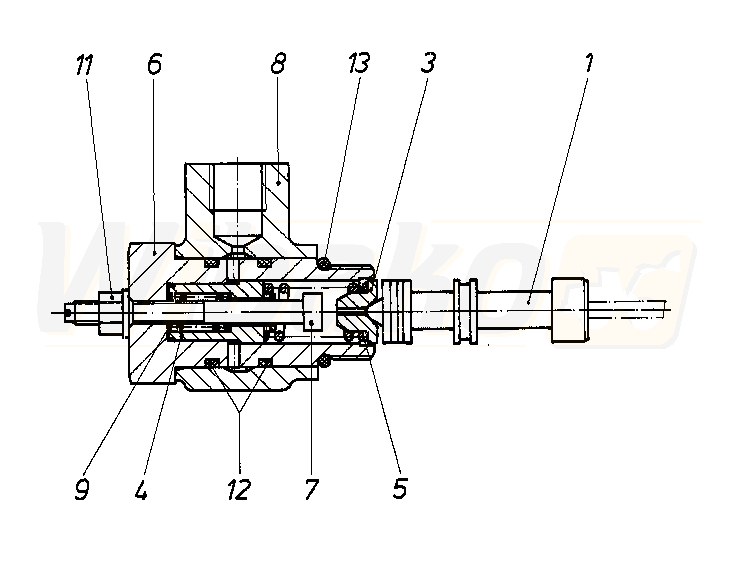

A8VO107LG1CH1/60R1-NZG05K01 (R909437250)
CONTROL PART (55998)

CONTROL PART
(55998)


1

CONTROL PISTON
(14857)


3

SPRING DISK
(56091)


4

CONTROL SLEEVE
(56092)


5

COMPRESSION SPRING
(14070)


6

THREADED PART
(56093)


7

SOCKET HEAD CAP SCREW
(17479)


8

CONNECTING PIECE
(12585)


9

COMPRESSION SPRING
(17480)


11

SEALING NUT
(10369)


12

O-RING
(10470)


13

O-RING
(10377)



Return
