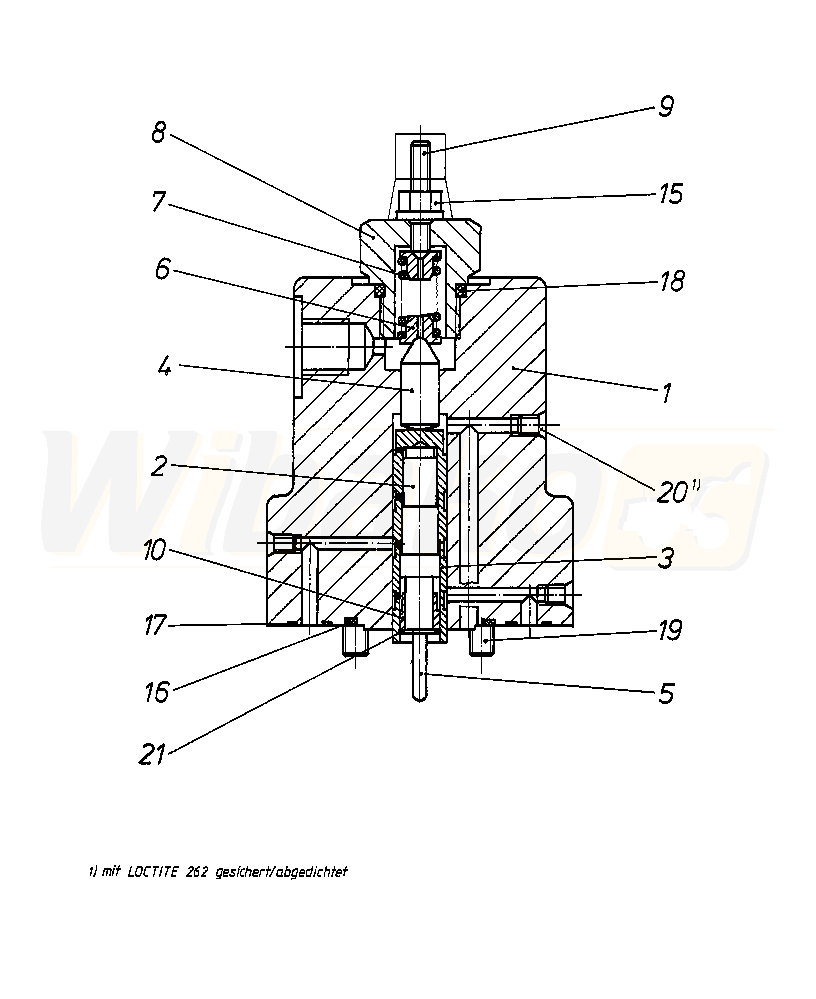

A8VO107LA2KH1/60R1-PZG05K02-S (R909603040)
CONTROL UNIT (80183)

CONTROL UNIT
(80183)


1

CONTROL HOUSING
(80186)


2

CONTROL PISTON
(80187)


3

CONTROL SLEEVE
(80188)


4

POSITIONING PISTON
(13627)


5

PIN
(80189)


6

SPRING DISK
(13571)


7

COMPRESSION SPRING
(13628)


8

SCREW PLUG
(13573)


9

SETSCREW
(11074)


10

BUSHING
(80191)


15

SEALING NUT
(10369)


16

O-RING
(11086)


17

O-RING
(11087)


18

O-RING
(10771)


19

SOCKET HEAD CAP SCREW
(11573)


20

DOUBLE BREAK-OFF PLUG
(19008)


21

SNAP RING
(10533)



Return
