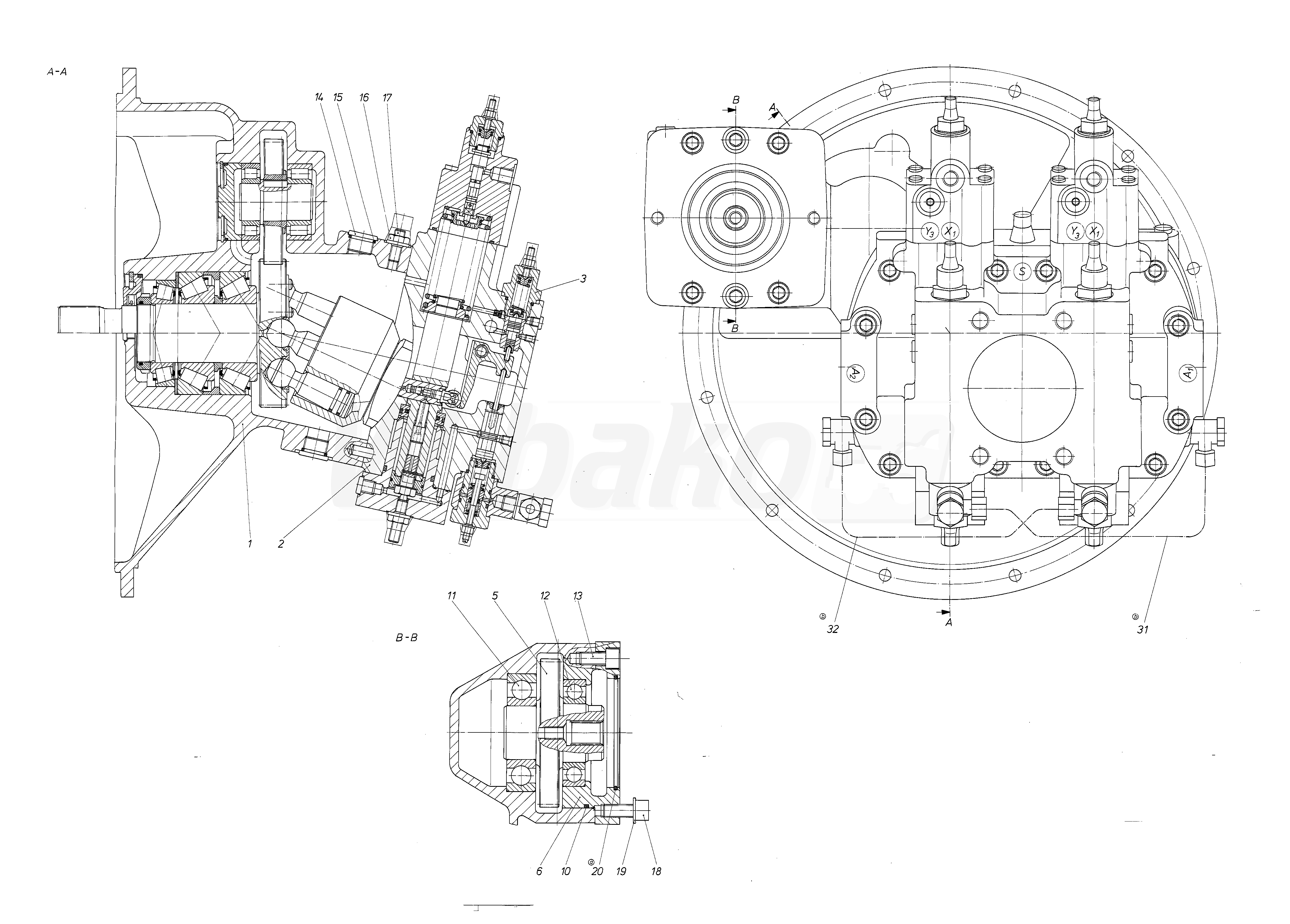

A8VO107LR3CH2/60R1-PZG05K02 (R909604330)

1

AXIAL-PISTON PUMP
(12131)

Group »


2

CONTROL
(80354)

Group »


5

TOOTHED WHEEL
(16438)


6

FLANGE
(16439)


10

O-RING
(28550)


11

DEEP-GROOVE BALL BEARING
(12179)


12

DEEP-GROOVE BALL BEARING
(12180)


13

SOCKET HEAD CAP SCREW
(10257)


14

SCREW PLUG
(10258)


15

O-RING
(10214)


16

SEALING NUT
(10218)


17

SETSCREW
(10259)


18

SOCKET HEAD CAP SCREW
(10164)


19

WASHER


20

O-RING
(12674)


31

HYDRAULIC LINE
(56000)

Group »


32

HYDRAULIC LINE
(56001)

Group »


98

SEAL KIT
(80355)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
