A A10V O110 DRS /32R-VUC12N00 -SO833 (R902474116)
Axial piston variable pump O, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 32. Geometric displacement 110 cm3. Pressure controller with flow controller, hydraulic, X-T plugged with flushing function. Directions of rotation: clockwise (viewed on drive shaft). Seal: FKM (fluoroelastomer). Splined shaft ANSI B92.1a, reduced diameter, limited suitability for through drive. Mounting flange ISO 3019-1 SAE C; 2-hole. SAE flange ports: at top, at bottom, on opposite side, metric fastening thread. Without through drive.

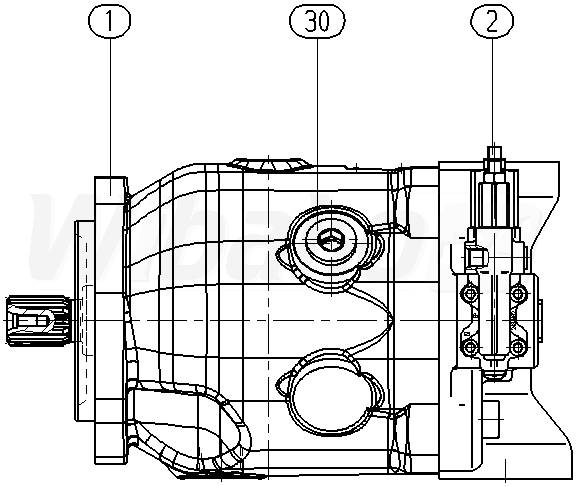

The above diagrams belong to Rexroth www.boschrexroth.com
