A A10V O110EK2DS /32R-VUC12N00P -S2657 (R902471861)
Axial piston variable pump O, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 32. Geometric displacement 110 cm3. Directions of rotation: clockwise (viewed on drive shaft). Seal: FKM (fluoroelastomer). Splined shaft ANSI B92.1a, reduced diameter, limited suitability for through drive. Mounting flange ISO 3019-1 SAE C; 2-hole. SAE flange ports: at top, at bottom, on opposite side, metric fastening thread. Without through drive. DEUTSCH molded connector, 2-pin – without suppressor diode.

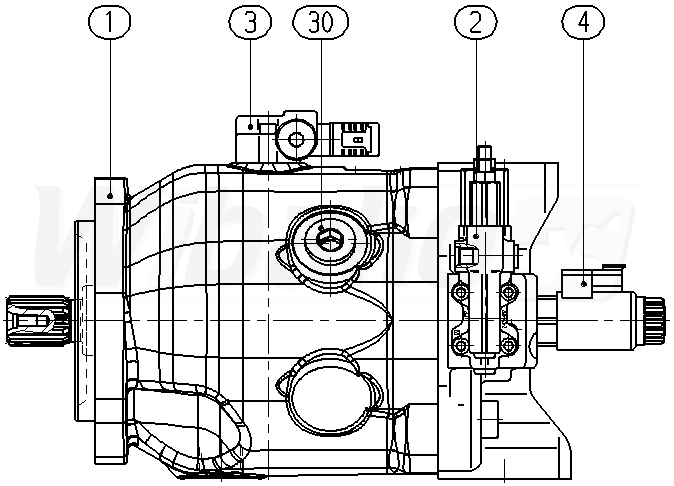

The above diagrams belong to Rexroth www.boschrexroth.com
