A A10V O110EK2DS/32R-VUC12N00P -SO833 (R902468817)

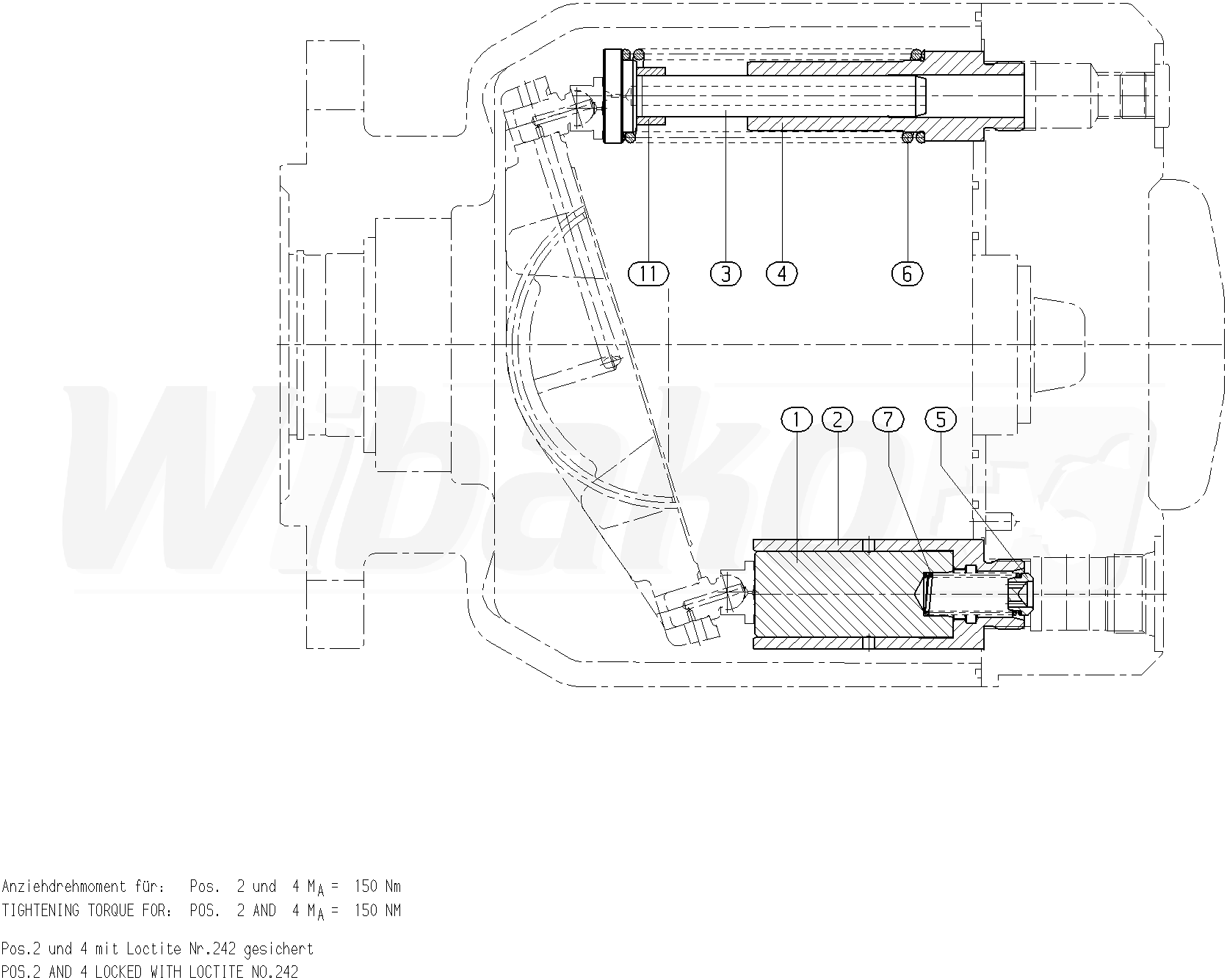

ADJUSTING PIECE (83747)

ADJUSTING PIECE
(83747)


1

ADJUSTING PISTON
(83749)


2

PISTON GUIDE
(83750)


3

OPPOSED PISTON
(15493)


4

PISTON GUIDE
(15494)


5

SPRING DISK
(83751)


6

COMPRESSION SPRING
(15495)


7

COMPRESSION SPRING
(83752)


11

STOP SLEEVE
(83753)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
