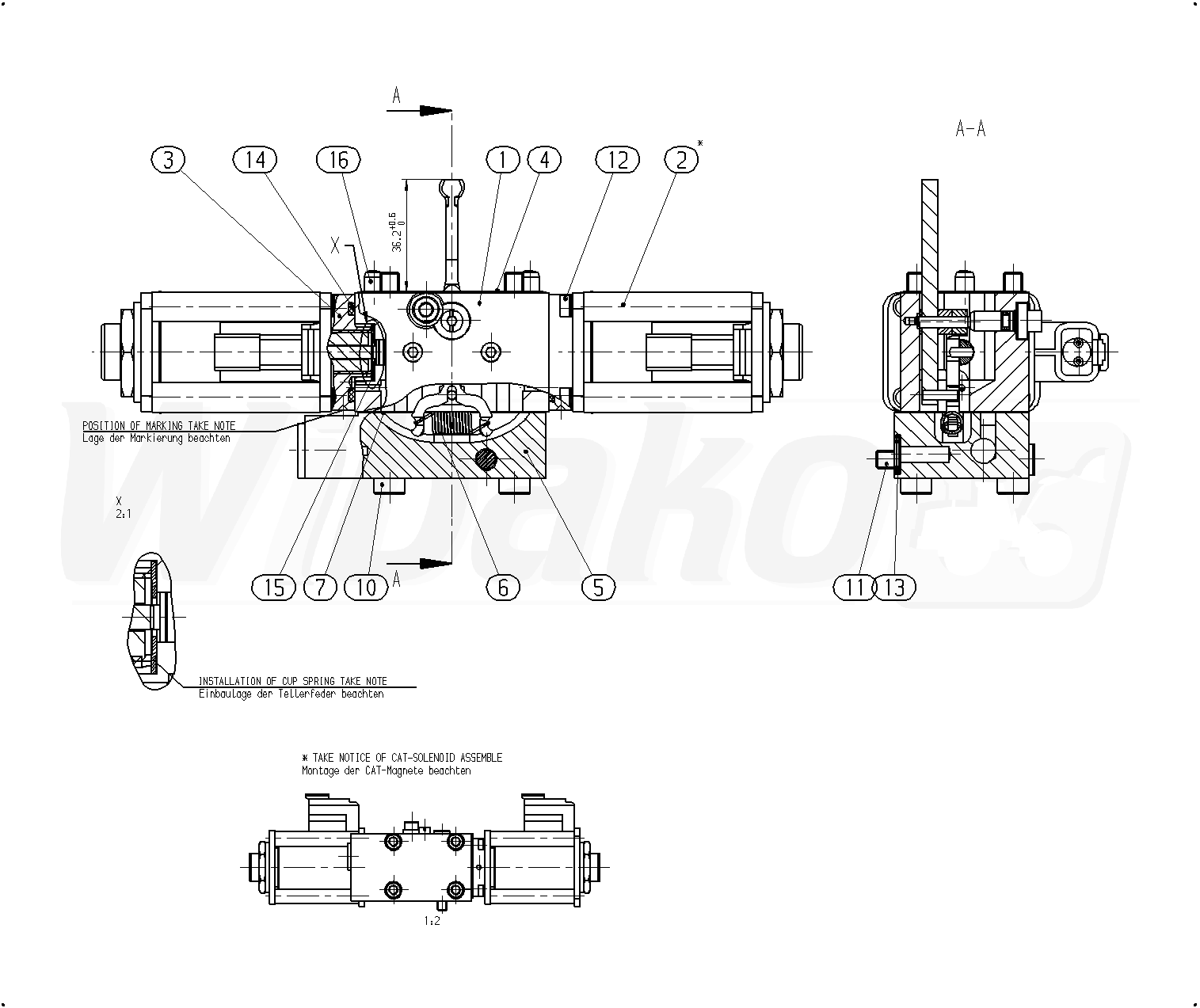

AA4VG56EP1D1/32R-NZCXXF003DX-S (R902096161)
CONTROL MODULE (25992)

CONTROL MODULE
(25992)


1

BASIC UNIT
(15466)

Group »


2

PROPORTIONAL SOLENOID
(24901)


3

LOCATION PIECE
(13796)


4

SEAL
(10783)


5

COVER
(22216)

Group »


6

EXTENSION SPRING
(13798)


7

SEAL
(13799)


10

SOCKET HEAD CAP SCREW
(12219)


11

SOCKET HEAD CAP SCREW
(10904)


12

SOCKET HEAD CAP SCREW
(12810)


13

O-RING
(12860)


14

O-RING
(11843)


15

DISC SPRING


16

STRAIGHT PIN
(12694)



Return
