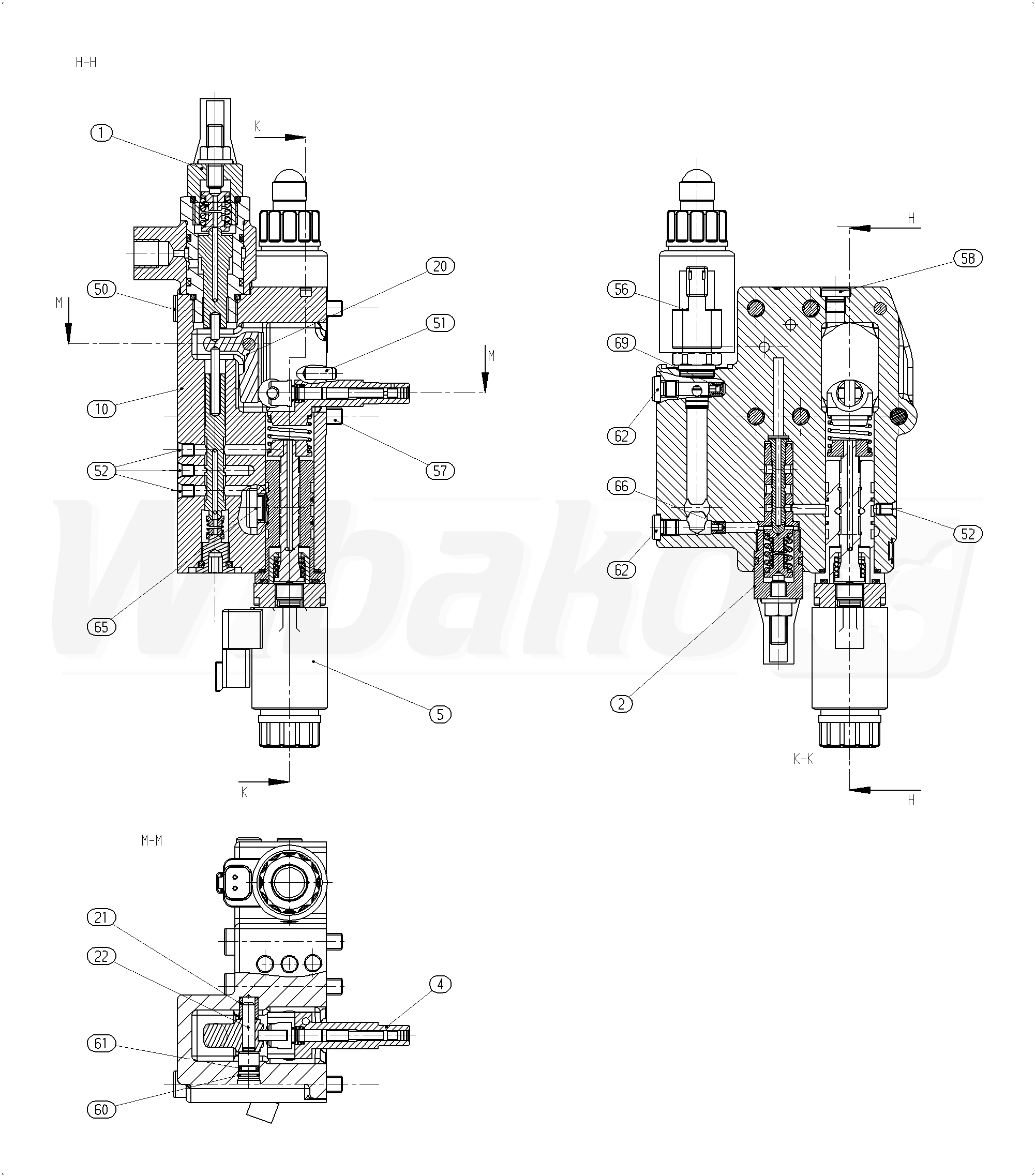

A11VLO145LG1XU2/11L-NZD12K04-S (R902200547)
REGULATOR (68425)

REGULATOR
(68425)


1

CONTROL ELEMENT
(68426)

Group »


2

CONTROL ELEMENT
(68427)

Group »


4

MEASURING PISTON
(15420)

Group »


5

CONTROL ELEMENT
(28641)

Group »


10

CONTROL HOUSING
(71006)


20

ANGLE LEVER
(15423)


21

BEARING BOLT
(12085)


22

BUSHING
(12086)


50

SOCKET HEAD CAP SCREW
(10368)


51

STRAIGHT PIN
(12088)


52

DOUBLE BREAK-OFF PLUG
(18990)


56

PROPORTIONAL PRESSURE RELIEF VALVE
(71007)


57

SOCKET HEAD CAP SCREW
(10778)


58

SCREW PLUG
(10220)


60

RETAINING RING
(12089)


61

O-RING
(26343)


62

SCREW PLUG
(10330)


65

SCREW PLUG
(10015)


66

NOZZLE
(10619)


69

NOZZLE
(10073)


98

SEAL KIT
(12090)
