A11VLO190LE2S6/11R-NZD12N00-S (R902017407)

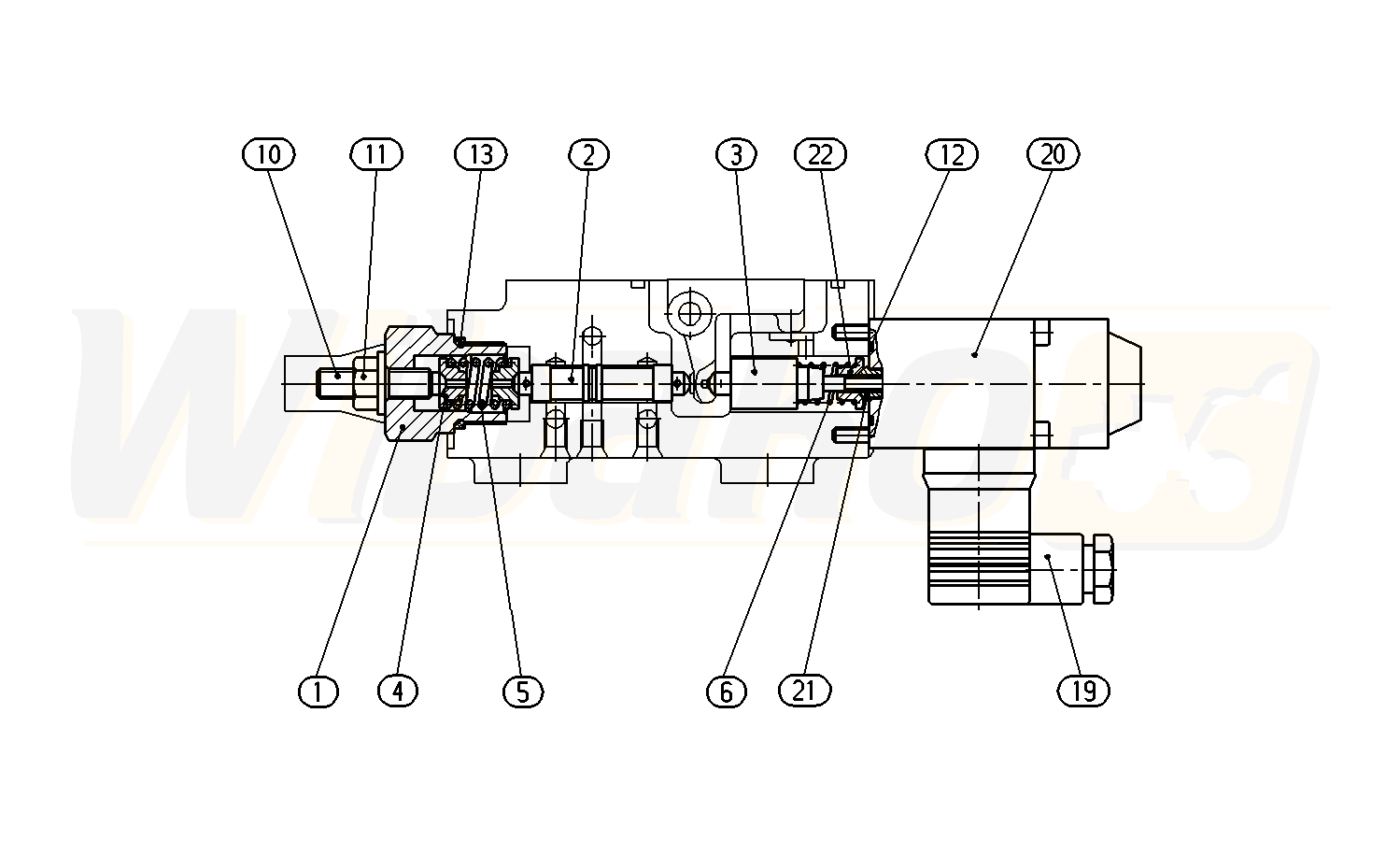

CONTROL ELEMENT (87939)

CONTROL ELEMENT
(87939)


1

SCREW PLUG
(13532)


2

CONTROL PISTON
(12583)


3

SPRING BOLT
(87942)


4

SPRING BOLT
(13534)


5

COMPRESSION SPRING
(13452)


6

COMPRESSION SPRING
(13535)


10

SETSCREW
(13537)


11

SEALING NUT
(10215)


12

O-RING
(12696)


13

O-RING
(10214)


19

PLUG-IN CONNECTOR
(10519)


20

PROPORTIONAL SOLENOID
(14205)

Group »


21

SPRING WASHER
(14206)


22

SPRING DISK
(14207)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
