A11VLO190LR3DS/11R-NZD12N00-S (R902048833)

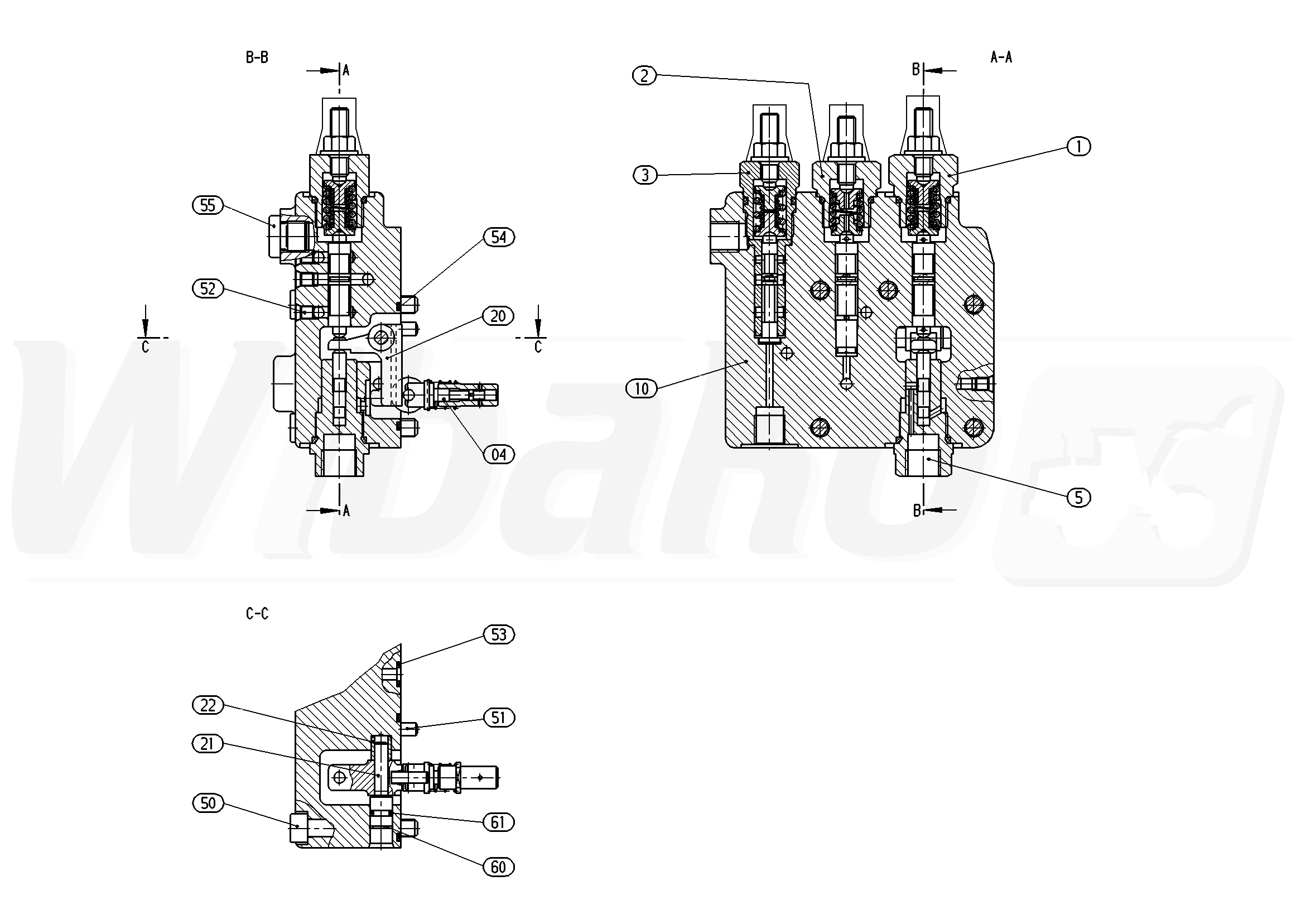

REGULATOR (88175)

REGULATOR
(88175)


1

CONTROL ELEMENT
(16191)

Group »


2

CONTROL ELEMENT
(16906)

Group »


3

CONTROL ELEMENT
(19186)

Group »


4

MEASURING PISTON
(12577)

Group »


5

CONTROL ELEMENT
(88176)

Group »


10

CONTROL HOUSING
(88177)


20

ANGLE LEVER
(12580)


21

BEARING BOLT
(12581)


22

BUSHING
(12086)


50

SOCKET HEAD CAP SCREW
(10778)


51

STRAIGHT PIN
(12088)


52

DOUBLE BREAK-OFF PLUG
(18990)


53

R-RING
(12077)


54

O-RING
(11186)


55

SCREW PLUG
(10015)


60

RETAINING RING
(12089)


61

O-RING
(24903)


98

SEAL KIT
(12582)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
