A11VLO200LRU2/10L-NZD12K66E (R902000927)

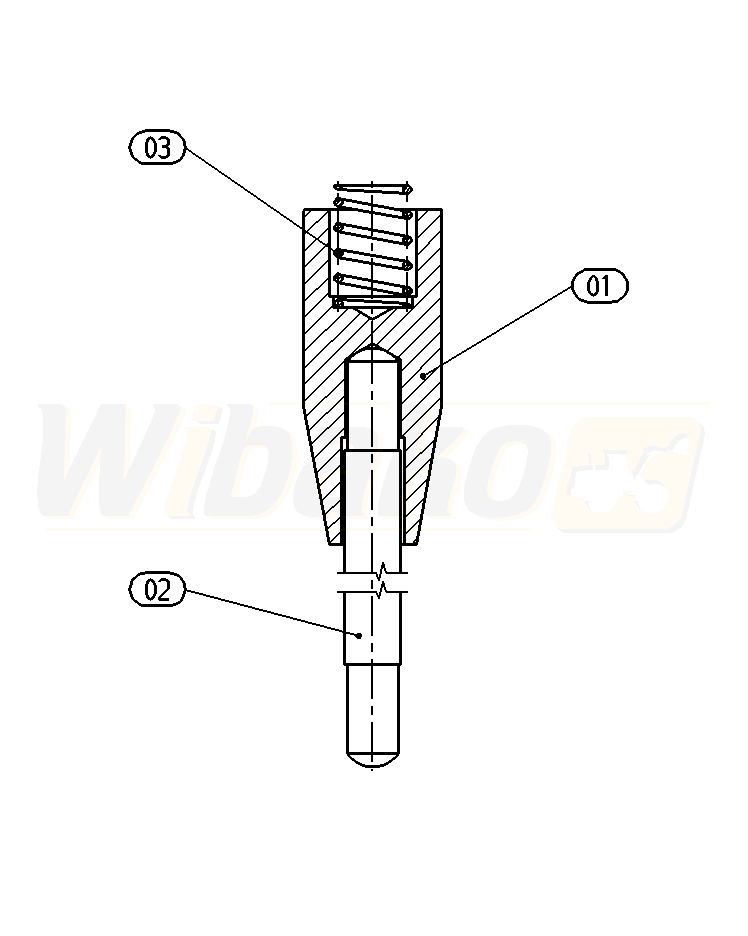

CONTROL (89003)

CONTROL
(89003)


1

RESET PISTON
(89006)


2

RESET ROD
(56549)


3

COMPRESSION SPRING
(12626)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
