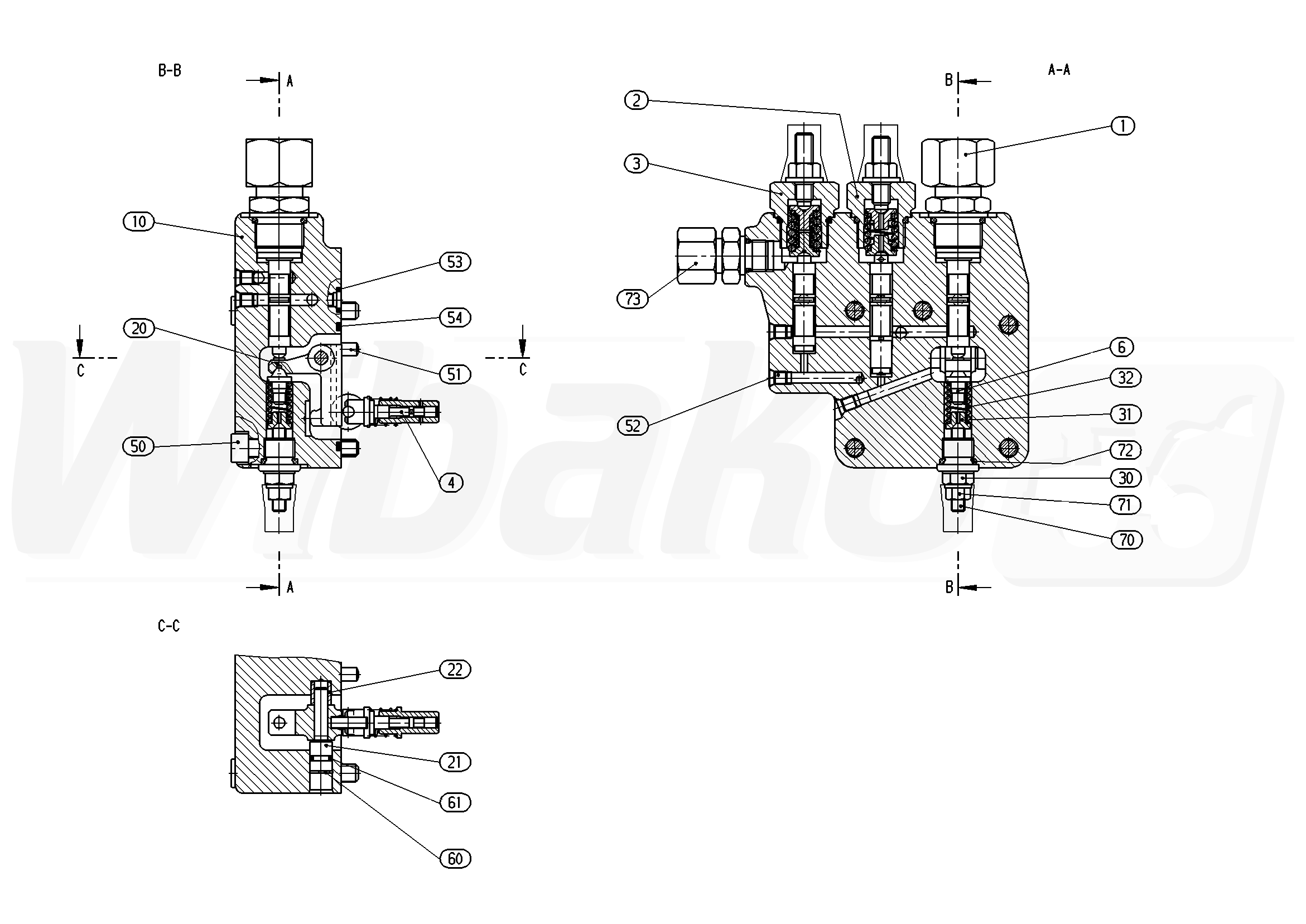

A11VLO250LG2DS/10R-NZD12K01-S (R909447526)
REGULATOR (89299)

REGULATOR
(89299)


1

CONTROL ELEMENT
(89301)

Group »


2

CONTROL ELEMENT
(16906)

Group »


3

CONTROL ELEMENT
(16192)

Group »


4

MEASURING PISTON
(22141)

Group »


6

SPRING BOLT
(22441)


10

CONTROL HOUSING
(89302)


20

ANGLE LEVER
(13531)


21

BEARING BOLT
(12581)


22

BUSHING
(12086)


30

SCREW PLUG
(19520)


31

SPRING DISK
(12010)


32

COMPRESSION SPRING
(89303)


50

SOCKET HEAD CAP SCREW
(10778)


51

STRAIGHT PIN
(12088)


52

DOUBLE BREAK-OFF PLUG
(18990)


53

O-RING
(10188)


54

O-RING
(11186)


60

RETAINING RING
(12089)


61

O-RING
(24903)


70

SETSCREW
(89304)


71

SEALING NUT
(10369)


72

O-RING
(10226)


73

THREADED FASTENER
(80871)


98

SEAL KIT
(12582)



Return
