A11VO250LRU2/10R-NPD12N00V-S (R909447542)

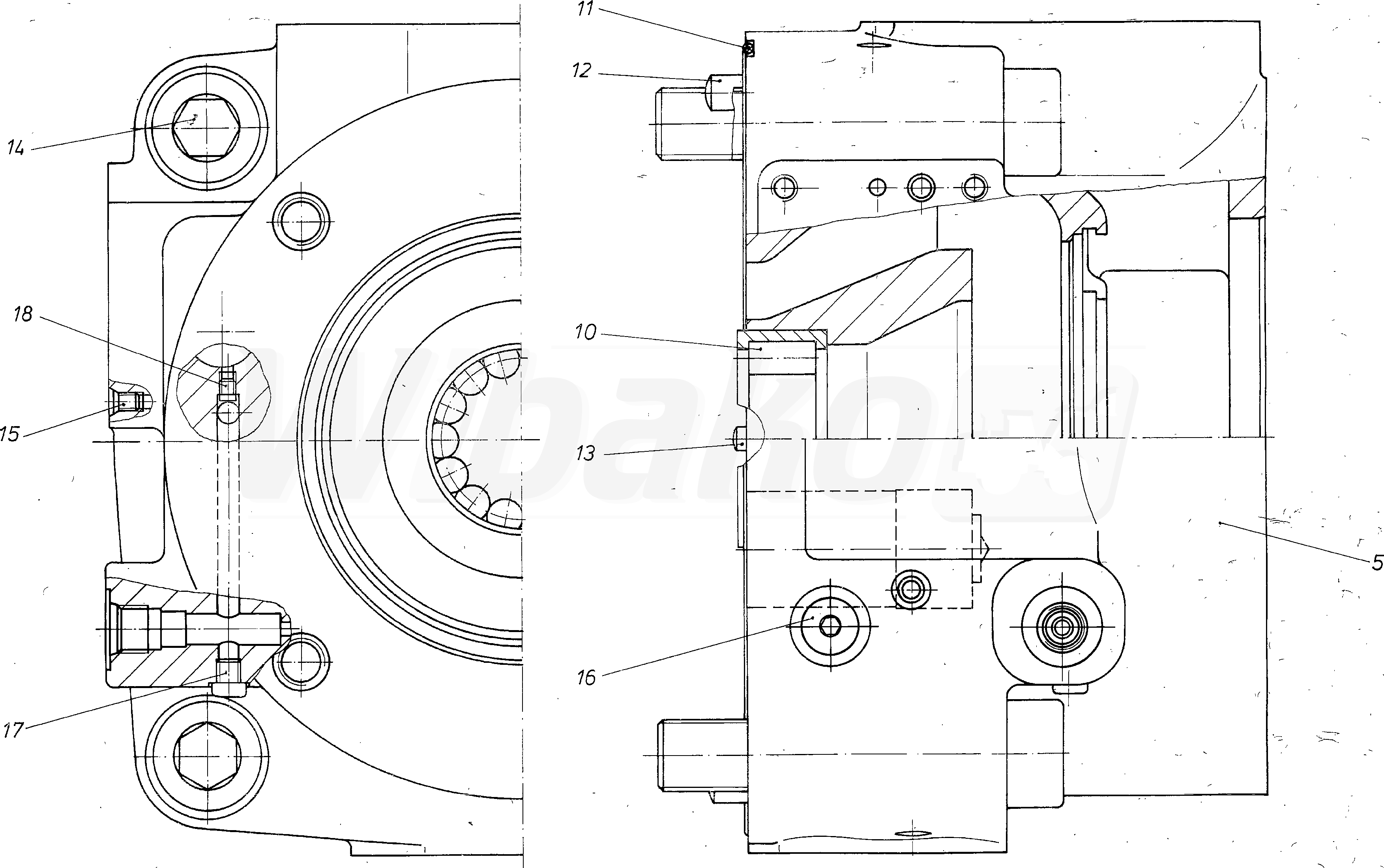

CONNECTION PLATE, RL (55387)

CONNECTION PLATE, RL
(55387)


5

CONNECTION PLATE, RL
(56365)


10

CYL. ROLLER BEARING
(16690)


11

O-RING
(16691)


12

STRAIGHT PIN
(12571)


13

STRAIGHT PIN
(12572)


14

SOCKET HEAD CAP SCREW
(16692)


15

DOUBLE BREAK-OFF PLUG
(19009)


16

SCREW PLUG
(10190)


17

SCREW PLUG
(10330)


18

NOZZLE
(10711)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
