A11VO60LRCH2/10R-NZC12N00 (R902081516)

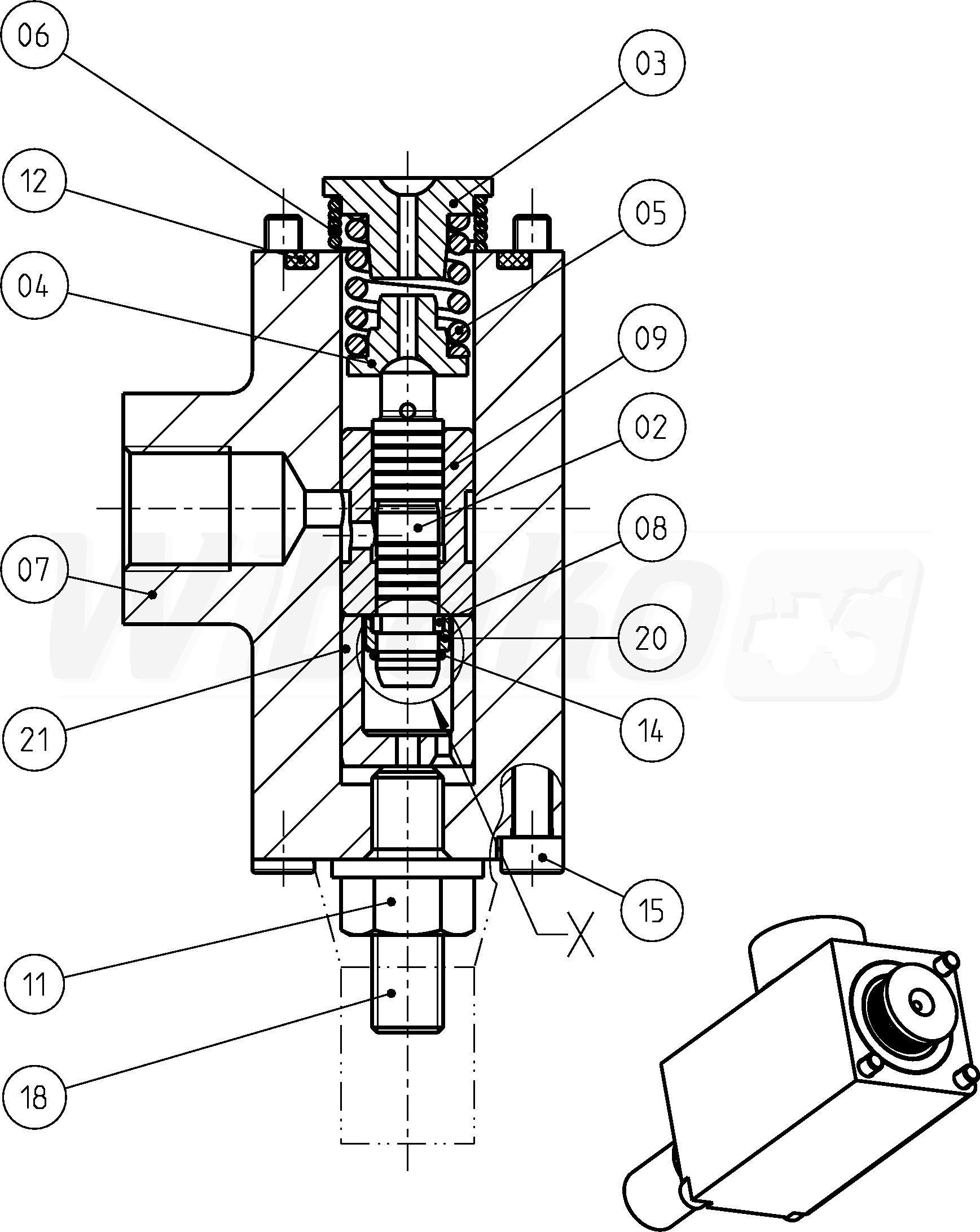

CONTROL ELEMENT (97325)

CONTROL ELEMENT
(97325)


2

DIFFERENTIAL PISTON
(97201)


3

SPRING DISK
(17429)


4

SPRING BOLT
(12186)


5

COMPRESSION SPRING
(12607)


6

COMPRESSION SPRING
(12112)


7

HOUSING
(97328)


8

STOP RING
(12610)


9

CONTROL SLEEVE
(56557)


11

SEALING NUT
(10215)


12

O-RING
(10377)


14

SNAP RING
(12611)


15

SOCKET HEAD CAP SCREW
(21942)


18

SETSCREW
(11499)


20

RETAINING RING
(12612)


21

ADJUSTING BUSHING
(12613)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
