A11VO95LR3S2/10R-NZG12K01T (R902064400)

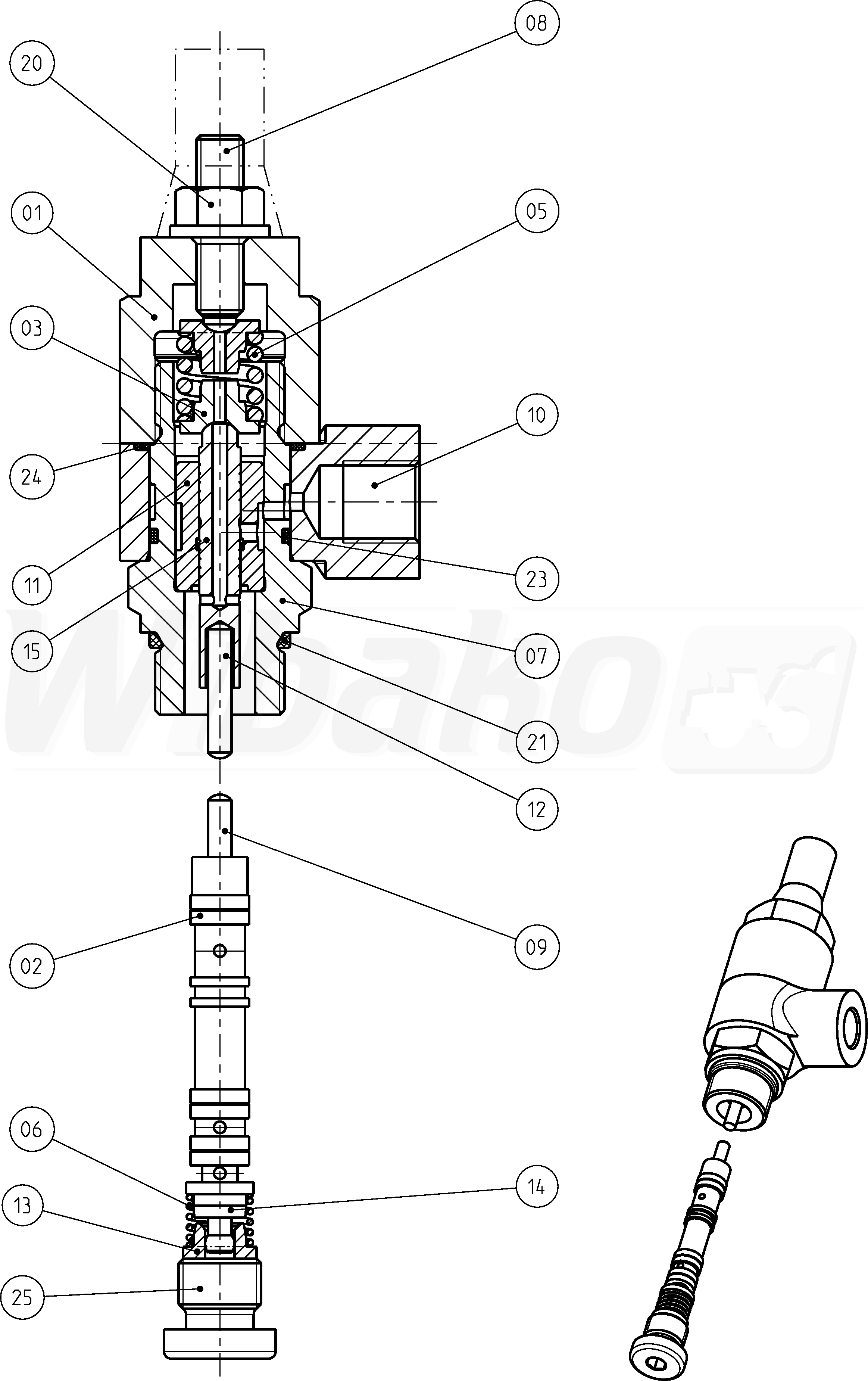

CONTROL ELEMENT (99107)

CONTROL ELEMENT
(99107)


1

SCREW PLUG
(19591)


2

CONTROL PISTON
(12185)


3

SPRING BOLT
(12186)


5

COMPRESSION SPRING
(12188)


6

COMPRESSION SPRING
(13535)


7

THREADED PART
(19592)


8

SETSCREW
(12097)


9

BOLT
(12098)


10

CONNECTING PIECE
(19593)


11

CONTROL SLEEVE
(56798)


12

BOLT
(19594)


13

SPRING DISK
(18129)


14

SPRING BOLT
(85931)


15

CONTROL PISTON
(56799)


20

SEALING NUT
(10215)


21

O-RING
(10214)


23

O-RING
(27724)


24

O-RING
(19596)


25

SCREW PLUG
(10015)



Return
