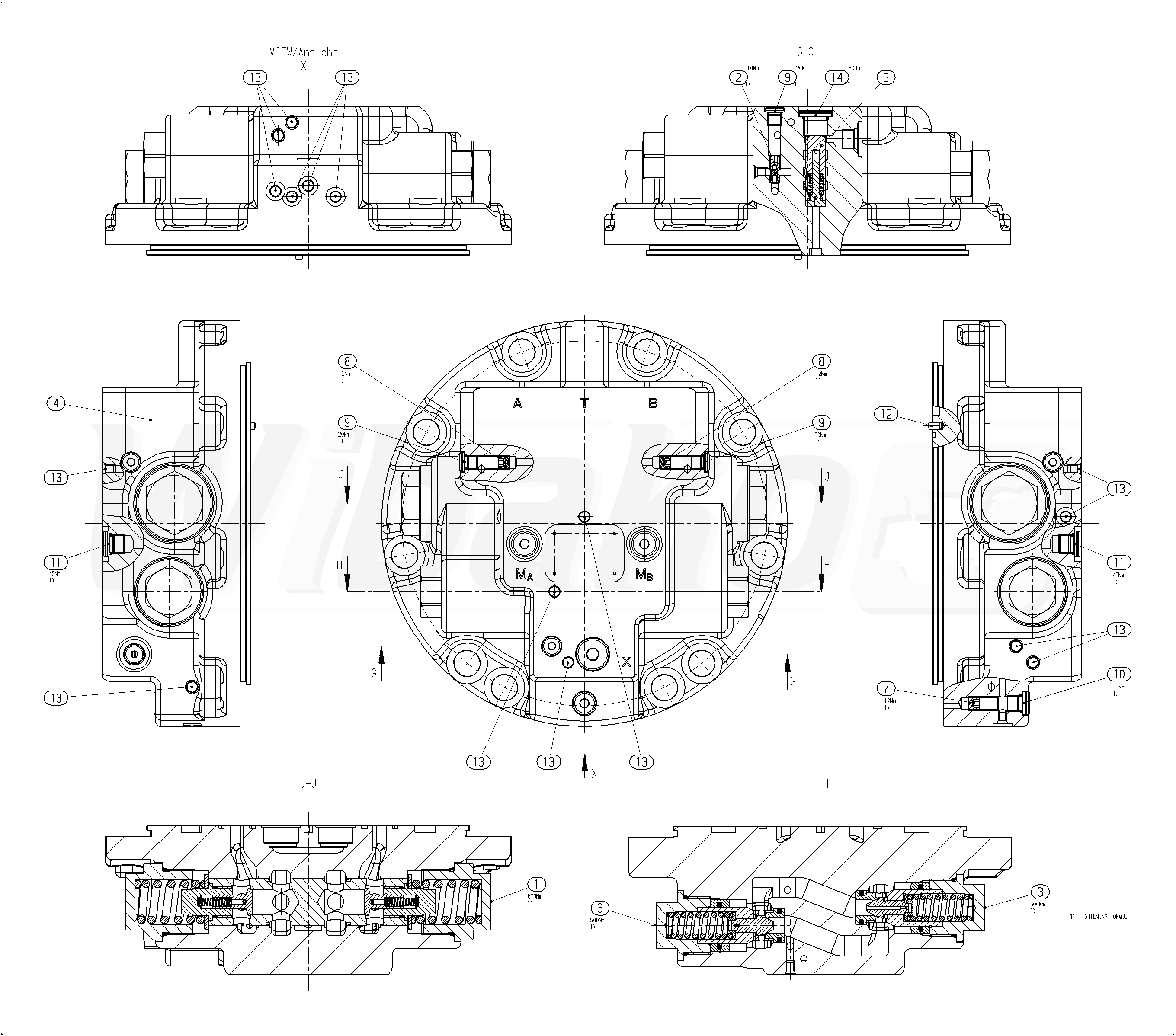

A32VT170HZD009A110/10MWV1B1000D006S360-0 (R902192863)
CONNECTION PLATE (101263)

CONNECTION PLATE
(101263)


1

BRAKE VALVE
(101264)

Group »


2

SHUTTLE VALVE
(11676)

Group »


3

PRESSURE RELIEF VALVE
(101265)

Group »


4

CONNECTION PLATE
(101266)


5

VALVE
(101143)

Group »


7

NOZZLE
(101267)


8

NOZZLE
(101268)


9

SCREW PLUG
(16127)


10

SCREW PLUG
(13317)


11

SCREW PLUG
(16128)


12

STRAIGHT PIN
(16846)


13

DOUBLE BREAK-OFF PLUG
(18990)


14

SCREW PLUG
(15680)



Return
