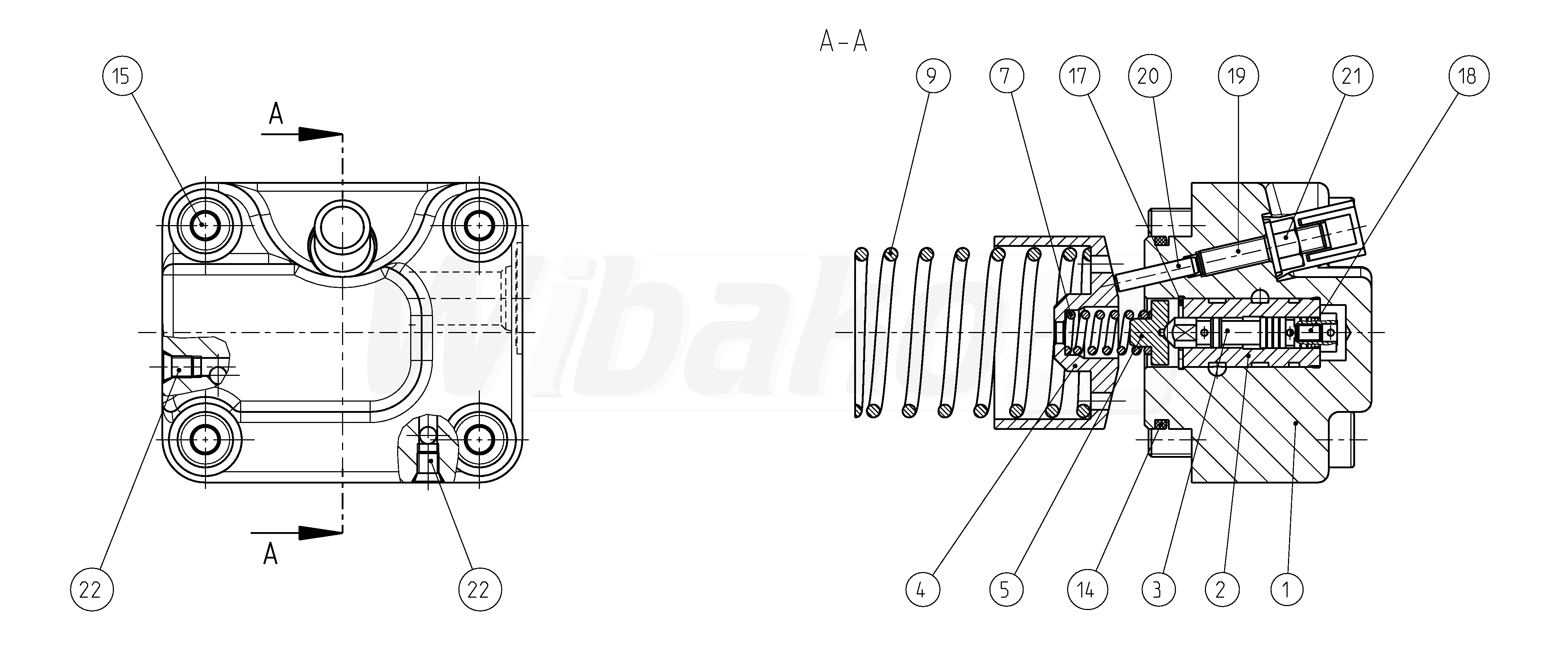

A6VM115DAX000007A/71MWV0P4Z910F-S (R902231190)
CONTROL PART (102021)

CONTROL PART
(102021)


1

CONTROL HOUSING
(21066)


2

CONTROL SLEEVE
(12475)


3

CONTROL PISTON
(15683)


4

ADJUSTING BUSHING
(11664)


5

SPRING DISK
(11665)


7

COMPRESSION SPRING
(11666)


9

COMPRESSION SPRING
(11667)


14

O-RING
(11668)


15

SOCKET HEAD CAP SCREW
(11669)


17

RETAINING RING
(11349)


18

PLUG
(11350)


19

SETSCREW
(11351)


20

STRAIGHT PIN
(11670)


21

SEALING NUT
(10369)


22

DOUBLE BREAK-OFF PLUG
(19008)
