AA11VO145LG2S/11R-NZGXXK80R-S (R902083985)

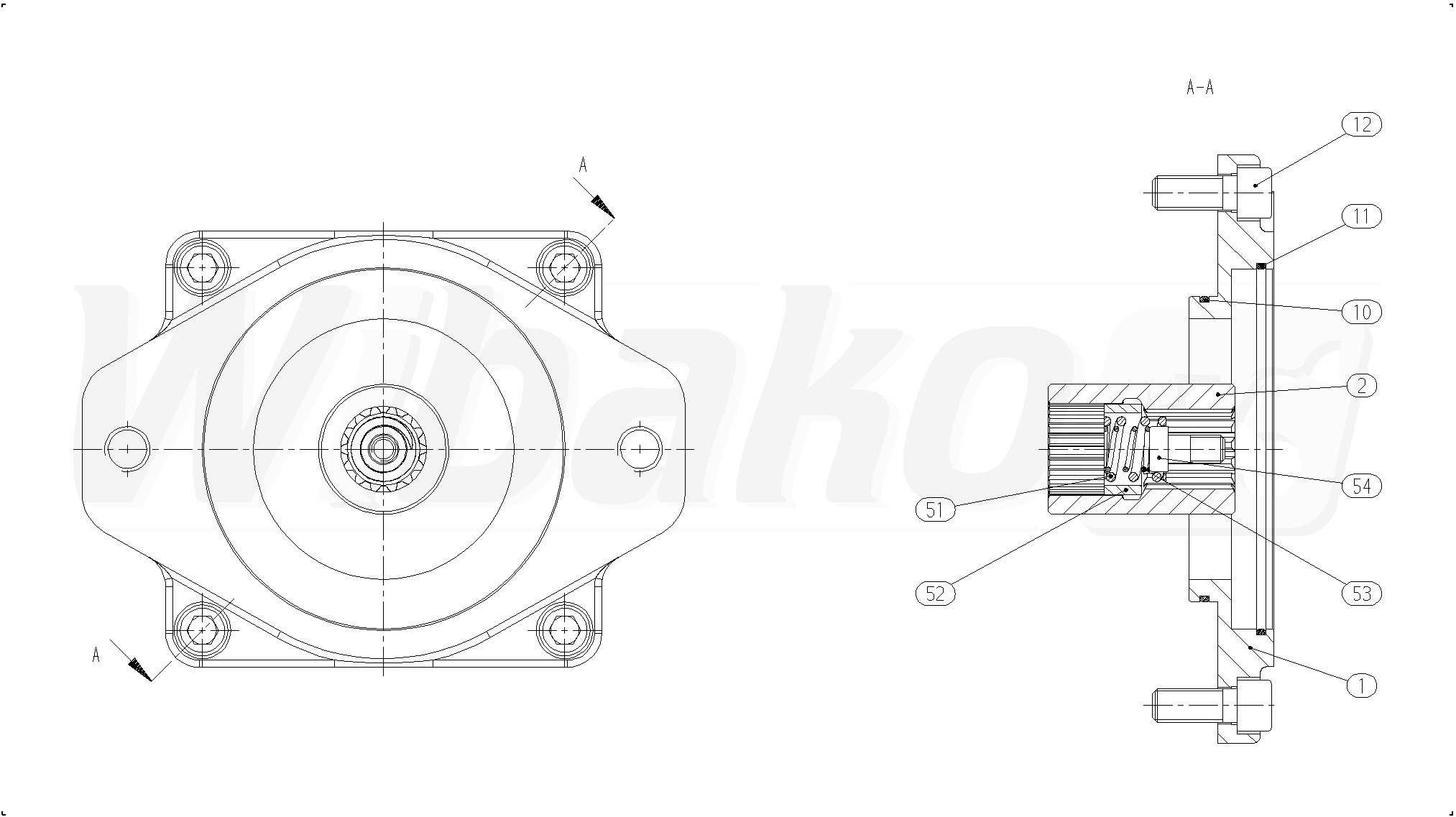

BELL HOUSING (57248)

BELL HOUSING
(57248)


1

FLANGE
(17211)


2

COUPLING HUB
(14372)


10

O-RING
(12674)


11

O-RING
(12936)


12

SOCKET HEAD CAP SCREW
(10164)


51

COMPRESSION SPRING
(57273)


52

GUIDE BUSHING
(14374)


53

COMPRESSION SPRING
(57274)


54

SOCKET HEAD CAP SCREW
(52371)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
