AA11VO190LG2S/11R-NZGXXK80-S (R992001111)

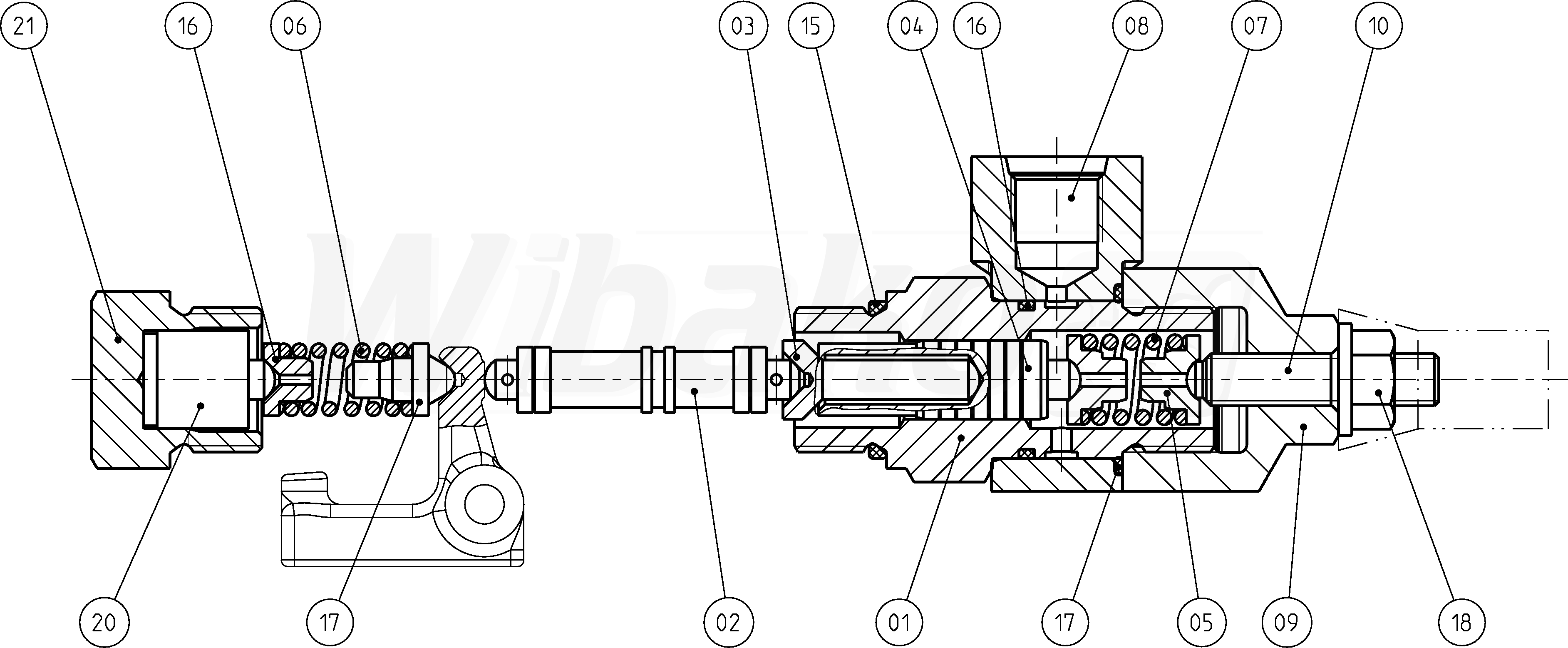

CONTROL ELEMENT (22140)

CONTROL ELEMENT
(22140)


1

SCREW PLUG
(22434)


2

CONTROL PISTON
(12583)


3

BOLT
(22435)


4

CONTROL PISTON
(22436)


5

SPRING BOLT
(14361)


6

COMPRESSION SPRING
(22437)


7

COMPRESSION SPRING
(12607)


8

CONNECTING PIECE
(22438)


9

SCREW PLUG
(22439)


10

SETSCREW
(13537)


15

O-RING
(10214)


16

SPRING DISK
(22440)


16

O-RING
(27724)


17

SPRING BOLT
(22441)


17

O-RING
(19596)


18

SEALING NUT
(10215)


20

CENTERING BOLT
(22442)


21

SCREW PLUG
(13454)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
