AA11VO200DS/10R*G* (R909429578)

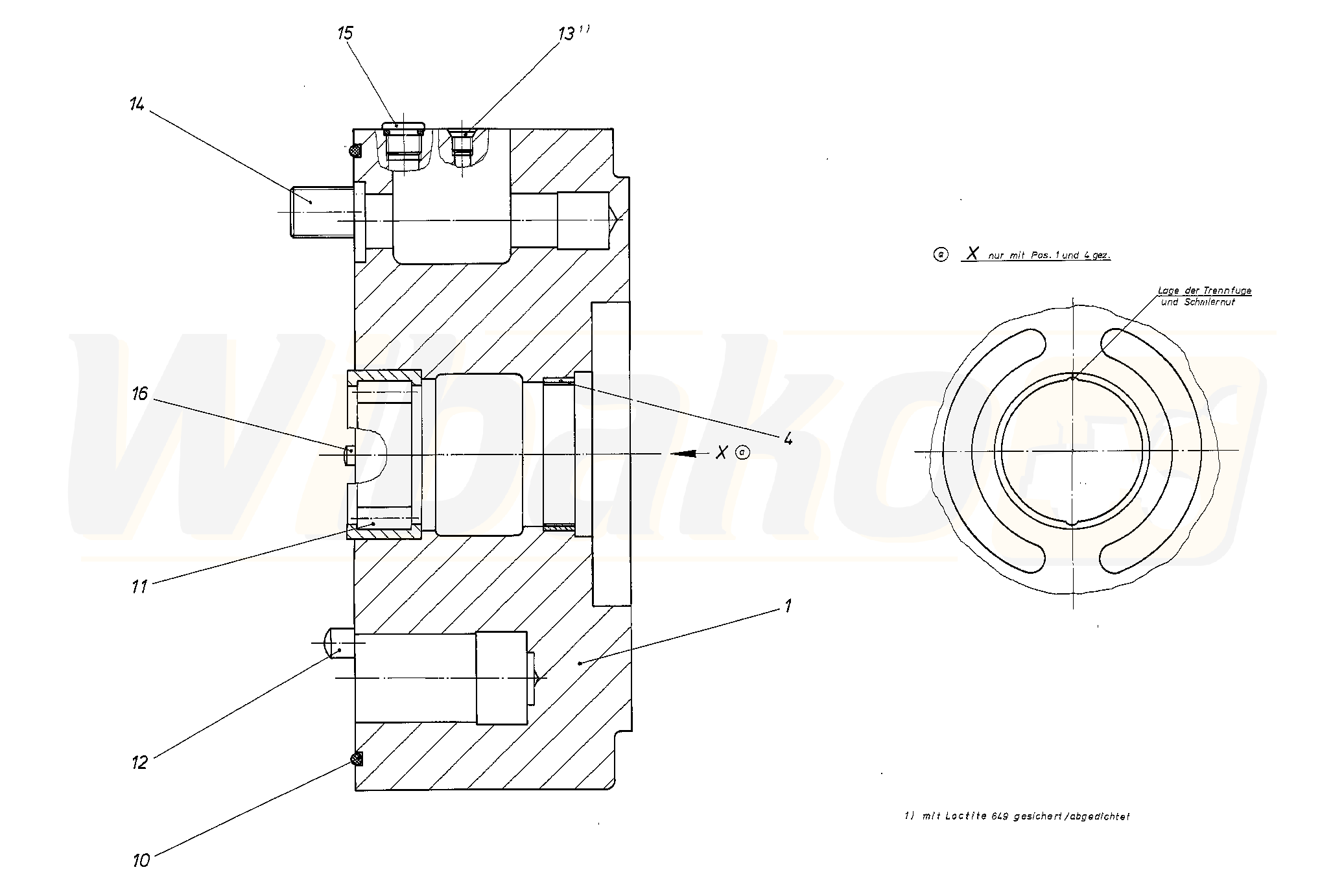

CONNECTION PLATE (104638)

CONNECTION PLATE
(104638)


1

CONNECTION PLATE
(104650)


4

BUSHING
(104651)


10

O-RING
(56544)


11

CYL. ROLLER BEARING
(12570)


12

STRAIGHT PIN
(12571)


13

DOUBLE BREAK-OFF PLUG
(19009)


14

SOCKET HEAD CAP SCREW
(24817)


15

SCREW PLUG
(11370)


16

STRAIGHT PIN
(12572)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
